RW1-1 5-SR-2.6-FM-WE-WH Redrock 1t Conventional Welding Rotator Set
A heavy-duty welding rotator manufactured to handle different vessel diameters, lengths and load capacities, resulting in a smooth, consistent rotation of cylindrical vessels. A conventional welding rotator provides durability and high-quality performance, enhancing any job by exceeding the demands of a range of intensive welding applications across multiple industries.

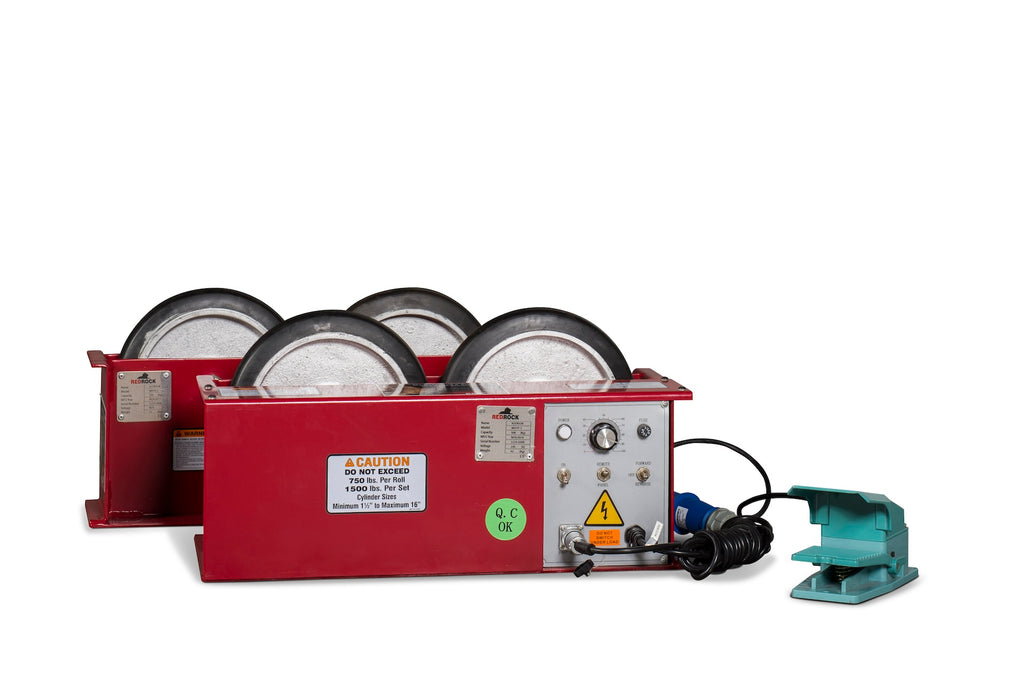

A conventional 1-tonne Redrock Automation welding drive and idler rotator set. It has a 0.5-tonne load capacity per unit and a total rotation capacity of 1.5 tonnes, designed to rotate cylindrical vessels starting from a minimum size of 115 mm at a 90-degree angle.
Features
- Consistent Rotation Speeds: Minimises manual positioning errors to deliver uniform, defect-free circumferential weld paths.
- Enhanced Safety: Eliminates risks associated with the manual handling of heavy cylindrical sections.
- Durability: Built with high-grade, replaceable vulcanised tyres mounted directly to rigid cast metal frames for maximum operational life and optimal tyre traction.
- Manual Setup Flexibility: Wheel centre distances must be manually adjusted by operators to fit the targeted workpiece profile before initiating welding sequences.
| Technical Data |
| Cat | 001T |
| Model | RW1-1 5-SR-2.6-FM-WE-WH |
| Item | Drive / Idler Rotator Set |
| Load Capacity Each | 0.5T |
| Total Rotation Capacity | 1.5T |
| Vessel Size Min | 115 mm at 90° included angle |
| Vessel Size Max | Φ506 mm at 40° included angle |
| Tyre Type & Size | Vulcanised PU dia 254 x 50.4 mm |
| Roller Speed | 558 to 5580 mm/min at 9-90 vdc |
* Please call for enquiries for pricing on longer terms.
