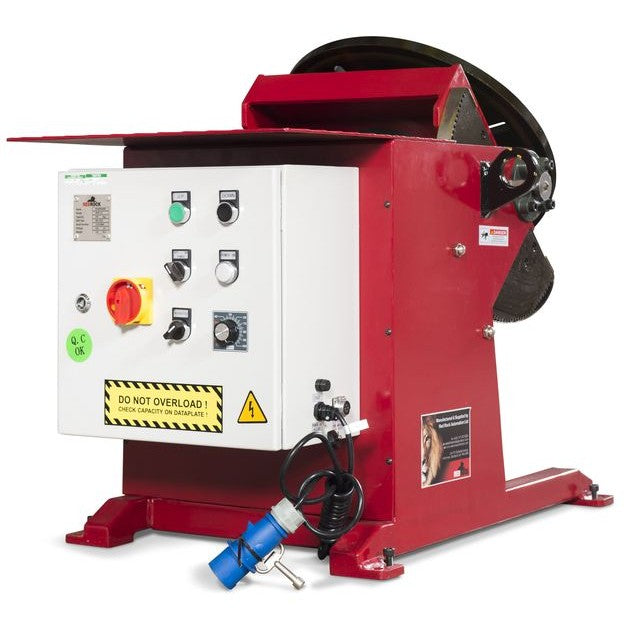

LPE0.25-0.5C-WD Redrock 250kg Welding Positioner
The Redrock LPE0.25-0.5C-WD is a professional grade 2 axis welding positioner to handle a 250 kg load capacity for heavy duty fabrication, assembly and precision welding. It provides controlled motorised rotation and motorised tilting, it helps operators eliminate manual material handling, maximise workspace ergonomics, and achieve consistent, high-quality welds.
Features
- 2 axis positioning: Enables controlled workpiece rotation and tilt for improved weld access
- Heavy-duty capacity: Rated for 250kg @ 300mm turning capacity and 250kg @ 300mm tilting capacity
- Controlled rotation: 0-4rpm at 0-90v / DC200w rotation speed for steady positioning during welding work
- Robust work table: Ø500 x 20t c/w 4 slots table for supporting fabrication components
- Industrial earthing: 300A earthing provision for welding applications
| Technical Data |
| Cat | POS0.25 |
| Model | LPE0.25-0.5C-WD |
| Turning Capacity | 250kg @ 300mm |
| Tilting Capacity | 250kg @ 300mm |
| Rotation Speed / Power | 0-4rpm at 0-90v / DC200w |
| Tilt Range / Power | 0-135° in 30sec/ DC500W |
| Rotation Drive Control: | DC Motor Card |
| Table Size | Ø500 x 20t c/w 4 slots |
| Earthing | 300A |
*Please call for enquiries on pricing for longer terms.
