RD5-PV Redrock 5t Self Aligning Welding Rotator Set

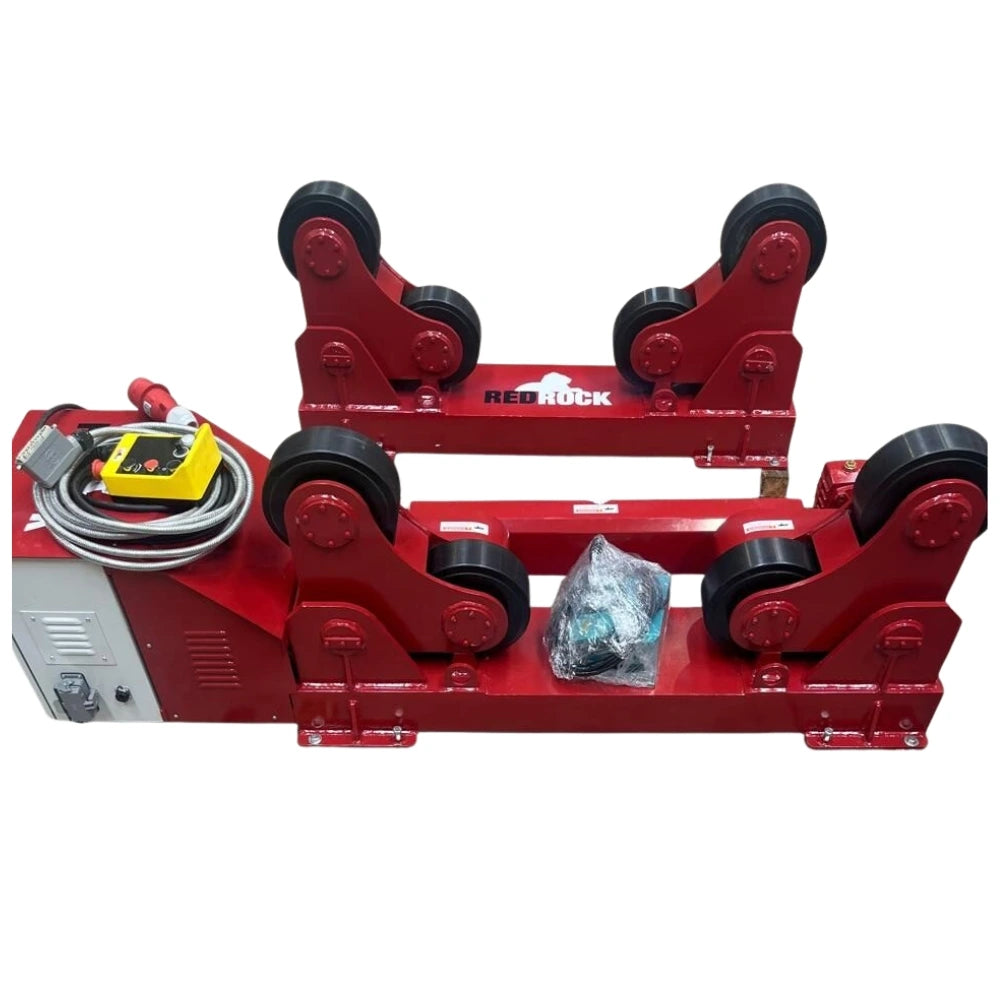

The RD5-PV is a 5-tonne capacity Self-Aligning Welding Rotator Set consists of one drive unit and one idler unit designed to automatically pivot & adjust to varying cylinder diameters without manual intervention.

Redrock 5t Self Aligning Welding Rotator Set (Model RD5-PV), engineered to elevate precision and efficiency in heavy-duty circumferential welding applications. This robust 5-ton self-aligning welding rotator set is an indispensable asset for professional pipe fabrication, pressure vessel manufacturing, and tank production, ensuring optimal weld quality and significantly reducing setup time.

Designed and manufactured with an unwavering commitment to quality, the Redrock RD5-PV system utilises a sophisticated self-aligning mechanism. This key feature automatically adjusts the roller carriages to accommodate varying vessel diameters, streamlining workflow and eliminating the need for manual adjustment between jobs. This technological superiority translates directly into increased productivity and operational savings for your facility.

Features

• Instant Self-Adjustment: Pivoting wheel blocks automatically open or close to match the vessel diameter. No manual pin adjustments are needed when switching work-piece sizes.
• Four-Wheel Load Distribution: Each unit uses four wheels instead of two. This distributes weight evenly and prevents thin-walled cylinders from bending or warping.
• Vessel Safety: Heavy-duty polyurethane tyres provide a high-grip surface while protecting delicate or polished work-pieces from scratches and surface contamination
• Synchronised Dual Drives: The drive unit utilises interconnected gearboxes to spin both sides simultaneously. This prevents the work-piece from slipping or stalling.
• Stepless Variable Speed: Handheld pendant control offers precise, step-free adjustments from 150 mm/min up to 1500 mm/min to match strict welding procedures.
• Low-Voltage Remote Pendant: Operates on safe, low-voltage control circuits. Includes controls for forward/reverse rotation, speed dials, and a prominent emergency stop button.
• Inverter Control: Features built-in frequency inverters to maintain smooth, steady rotation torque even at ultra-low speeds.
• 5-Tonne Total Loading: Safely handles up to 5 metric tonnes of total weight when using the drive and idler units together as a set.
• Broad Diameter Range: Adapts instantly to cylinders ranging from small Ø 602 mm pipes up to large Ø3,500 mm industrial vessels.
