RP10-1.8D-E Redrock 10,000kg Welding Positioner

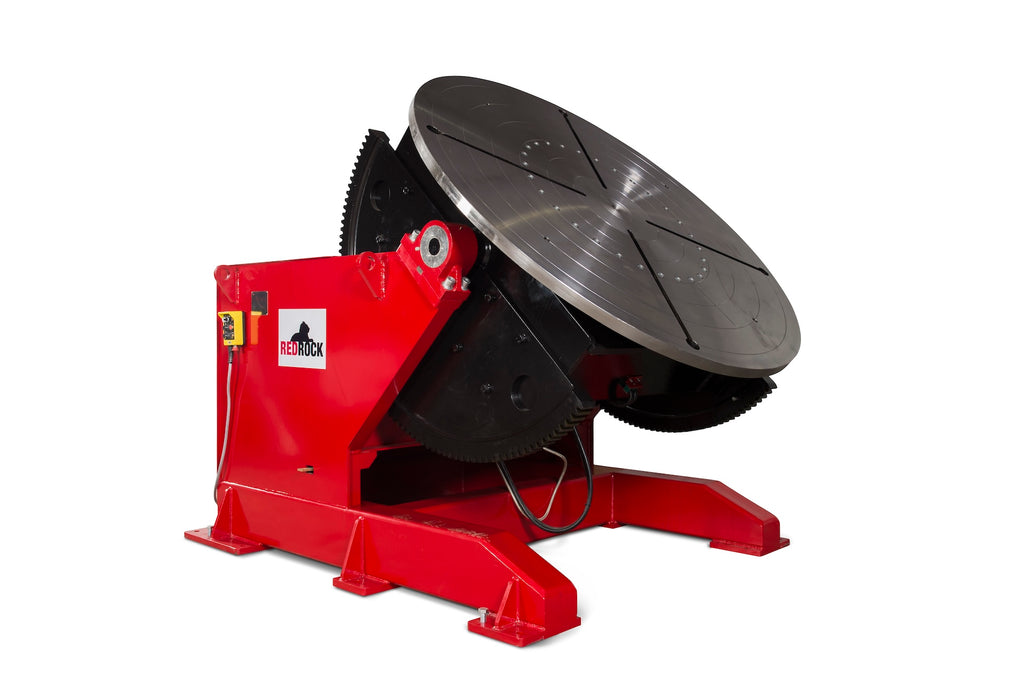

This positioner is built for high-demand welding environments like pressure vessel manufacturing, structural steel fabrication, and heavy equipment production. The Redrock RP10-1.8D-E is a heavy duty 10,000kg 2 axis hydraulic welding positioner to rotate and tilt massive work-pieces for safe high precision industrial welding.
Features
- 2 axis positioning: Enables controlled workpiece rotation and tilt for improved weld access
- Heavy-duty capacity: Rated for 10MT at 300mm turning capacity and 10MT at 300mm tilting capacity
- Controlled rotation: 0.048/-0.48rpm running 5-50Hz rotation speed for steady positioning during welding work
- Robust work table: Dia 1800mm table for supporting fabrication components
- Industrial earthing: 800A earthing provision for welding applications
| Technical Data |
| Cat | POS010 |
| Model | RP10-1.8D-E |
| Turning Capacity | 10MT at 300mm |
| Tilting Capacity | 10MT at 300mm |
| Rotation Speed / Power | 0.048/-0.48rpm running 5-50Hz |
| Tilt Range / Power | 0-135° |
| Rotation Drive Control | 4kW AC Inverter |
| Table Size | Dia 1800mm |
| Earthing | 800A |
| Tilt Speed | 135° in 160s running at 50Hz |
