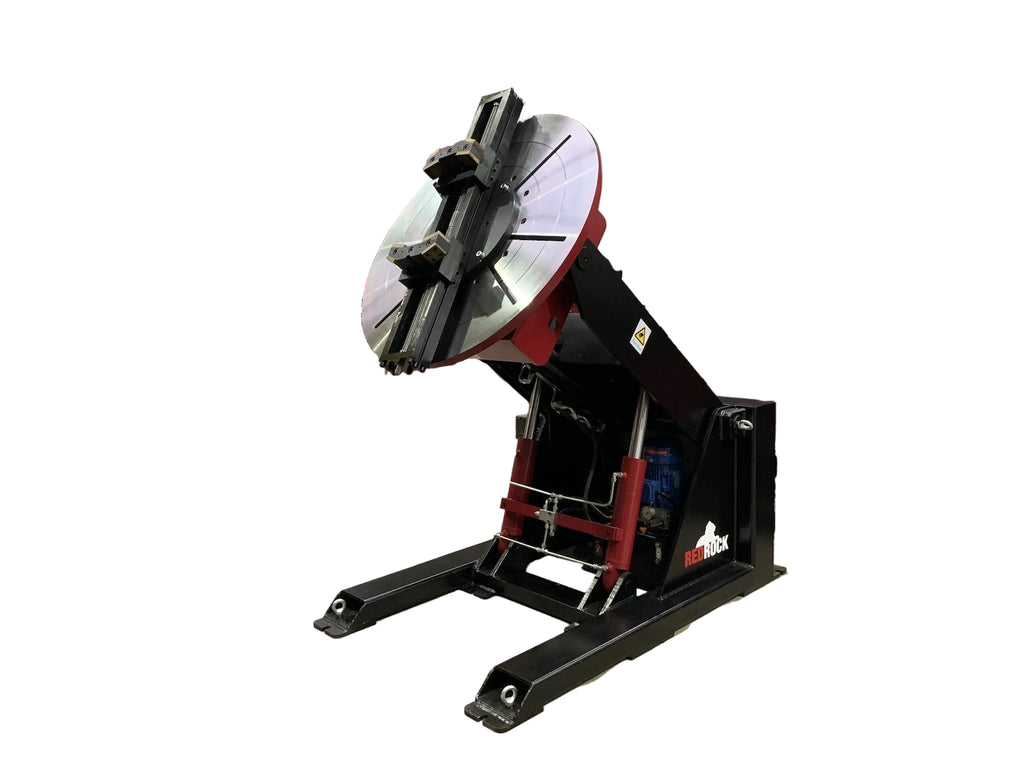

WHP-1 Redrock 1t Hydraulic Welding Positioner
The Redrock WHP-1 is a heavy duty 1 ton 3 axis hydraulic welding positioner to maximise workspace access and safety during complex fabrication tasks. By allowing operators to simultaneously lift, lower, tilt, and rotate work-pieces. It helps operators place larger components at a more accessible welding angle, supporting improved weld quality, reduced handling time and safer production flow.
Built for demanding fabrication environments, this 1t model combines 0.15-1.5rpm @ 5-50Hz rotation control, 0-130° tilt movement and a robust Ø780mm work table. It is suited to workshops and production facilities that need smooth, precise movement when positioning substantial components for welding.
Features
- 3 axis hydraulic positioning: Rotates, tilts, lifts and lowers workpieces for improved weld access
- Heavy-duty capacity: 1MT @ 100mm turning capacity and 1MT @ 150mm tilting capacity
- Smooth rotation control: 0.15-1.5rpm @ 5-50Hz rotation speed for controlled positioning
- Industrial drive system: 0.55kW AC Motor for reliable movement control
- Welding-ready earthing: 500A earthing provision for fabrication use
| Technical Data |
| Cat | POS001 |
| Model | WHP-1 |
| Turning Capacity | 1MT @ 100mm |
| Tilting Capacity | 1MT @ 150mm |
| Rotation Speed / Power | 0.15-1.5rpm @ 5-50Hz |
| Tilt Range / Power | 0-130° |
| Rotation Drive Control | 0.55kW AC Motor |
| Table Size | Ø780mm |
| Earthing | 500A |
*Please call for enquiries on pricing for longer terms
