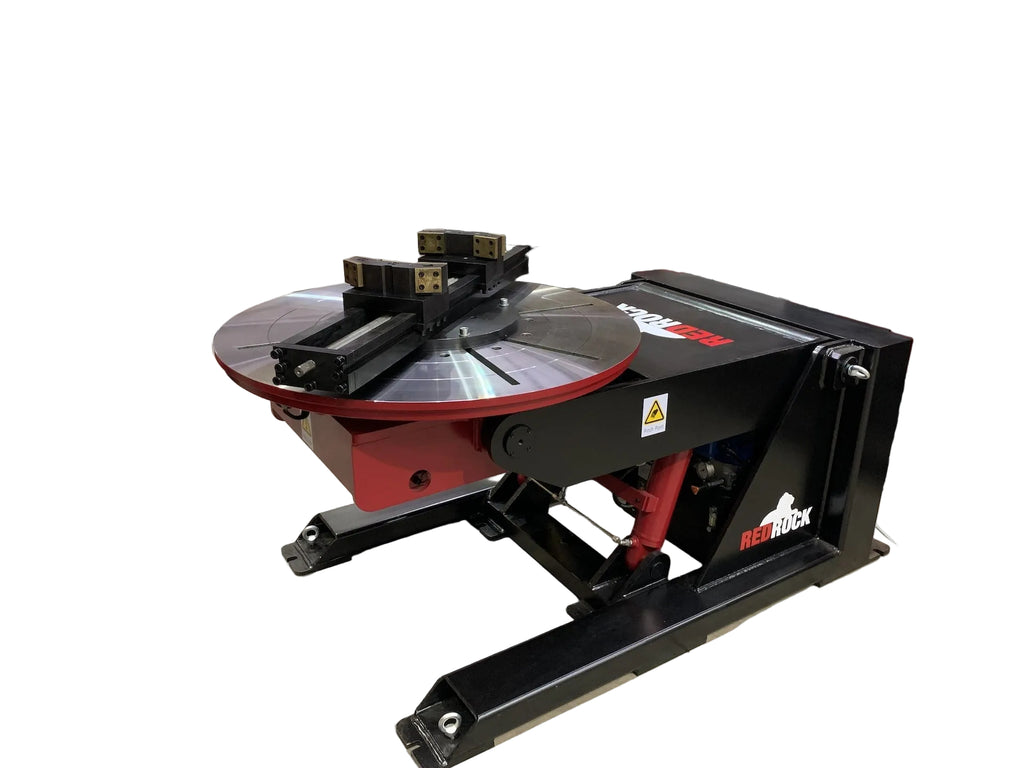

WHP-3 Redrock 3t Hydraulic Welding Positioner
The Redrock 3t 3 Axis Hydraulic Welding Positioner is a heavy-duty Redrock 3 axis hydraulic welding positioner designed for controlled workpiece rotation, tilt, lift and lower movement during welding and fabrication. It helps operators place larger components at a more accessible welding angle, supporting improved weld quality, reduced handling time and safer production flow.
Built for demanding fabrication environments, this 3t model combines 0.07-0.7 RPM @ 5-50hZ rotation control, 0-130° tilt movement and a robust Ø1200MM x 28mm work table. It is suited to workshops and production facilities that need smooth, precise movement when positioning substantial components for welding.
Features
- 3 axis hydraulic positioning: Rotates, tilts, lifts and lowers workpieces for improved weld access
- Heavy-duty capacity: 3MT @ 150mm turning capacity and 3MT @ 200mm tilting capacity
- Smooth rotation control: 0.07-0.7 RPM @ 5-50hZ rotation speed for controlled positioning
- Industrial drive system: 2×0.55kW AC Motor c/w brake for reliable movement control
- Welding-ready earthing: 500A earthing provision for fabrication use
| Technical Data |
| Cat | POS003 |
| Model | WHP-3 |
| Turning Capacity |
3MT @ 150mm |
| Tilting Capacity | 3MT @ 200mm |
| Rotation Speed / Power | 0.07-0.7 RPM@ 5-50hZ |
| Rotation Drive Control | 2×0.55kW AC Motor c/w brake |
| Table Size | Ø1200MM x 28mm |
| Earthing | 500A |
| Tilt Range / Power | 0-130° |
*Please call for enquiries on pricing for longer terms.
