MOSA CS230 YSX-CC/CV ECO 110/230/400V Diesel 230Amps 35.37298CVE

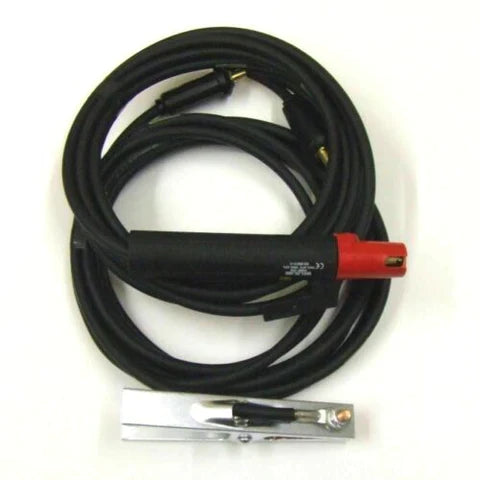

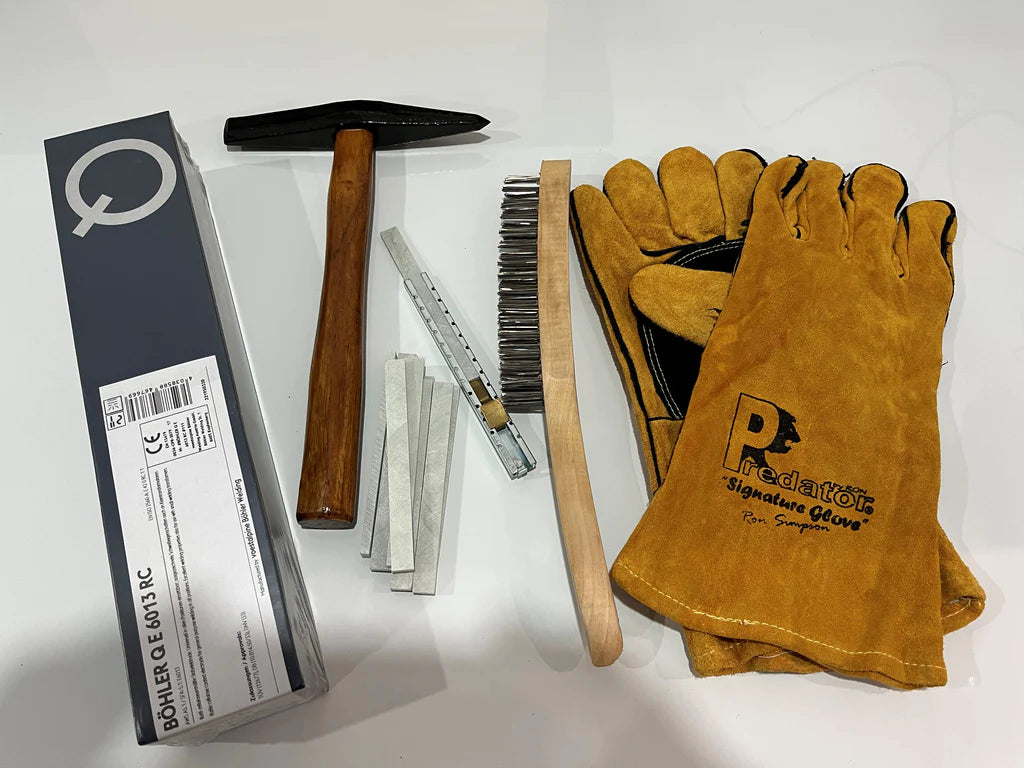

All Packages include MMA Lead 5metre, Earth Lead 5 metre, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.
Key Features • Arc welding source in D.C. welding • SMAW: Shielded Metal Arc Welding (Stick) • GTAW: Gas Tungsten Arc Welding (TIG) • GMAW: Gas Metal Arc Welding (MIG) • High frequency welding current and voltage control • A.C. generator, single-phase 230V/110V • Aux power also available while welding • MOSA power optimiser (patent pending) • Auto idle control • Super silenced • Large tank (23 litres) - 23 Hours • Meets EC directives for noise and safety C.C. Welding (Constant Current) SMAW (Stick)/GTAW (TIG) Current range 20 ÷ 210A Duty cycle 210A - 60%, 180A - 100% Open circuit voltage 65V C.C. Welding (Constant Current) GMAW (MIG)/FCAW (Flux Cored) CV (Constant Voltage) Current range 15 ÷ 30V Duty cycle 210A - 60%, 180A - 100% A.C. Generation - 50Hz - Three-Phase Asynchronous Alternator, Self-Regulated, Self-Exciting, Brushless Single-phase power 5 kVA (4 kW) / 230V / 21.7A Single-phase power 2.5 kVA (2.0 kW) / 110V / 22.7A Insulation class H Engine - Diesel, 4-Stroke, Direct Injection, Air Cooled Model Yanmar L 100 N Output* 6.5 kW (8.8 HP) Cylinders / Displacement 1 / 435cm³ Speed 3000 rpm Fuel consumption (welding 60%) 1.0 l/h * Maximum output (not overloadable) according to ISO 3046-1 General Specifications Tank capacity 23 litres Running time (welding 60%) 23 hours IP protection degree IP 23 Dimensions LxWxH (mm)* 1020 x 645 x 930 Dry weight* 230 Kg Measured acoustic power LwA (pressure LpA)** 91 dB(A) (66 dB(A) @ 7m) Guaranteed acoustic power LwA (pressure LpA) 92 dB(A) (67 dB(A) @ 7m)
Data page 10
