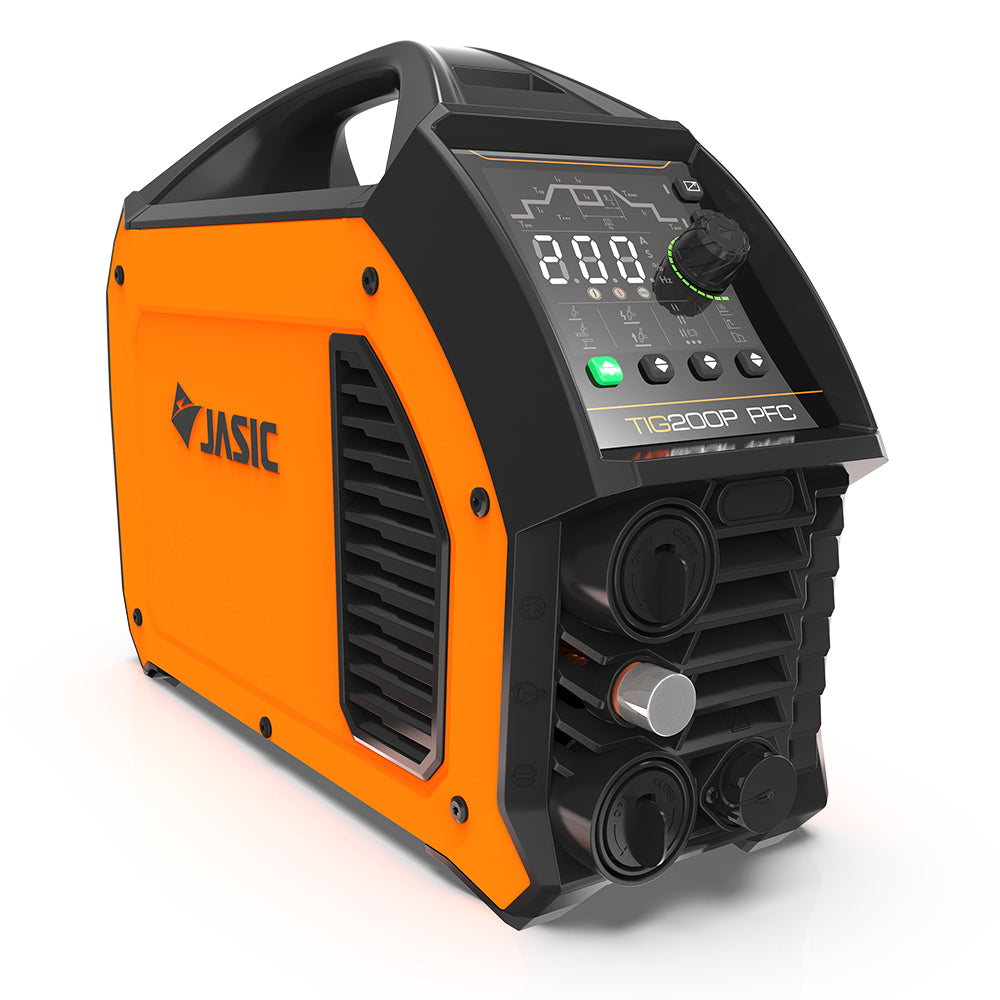

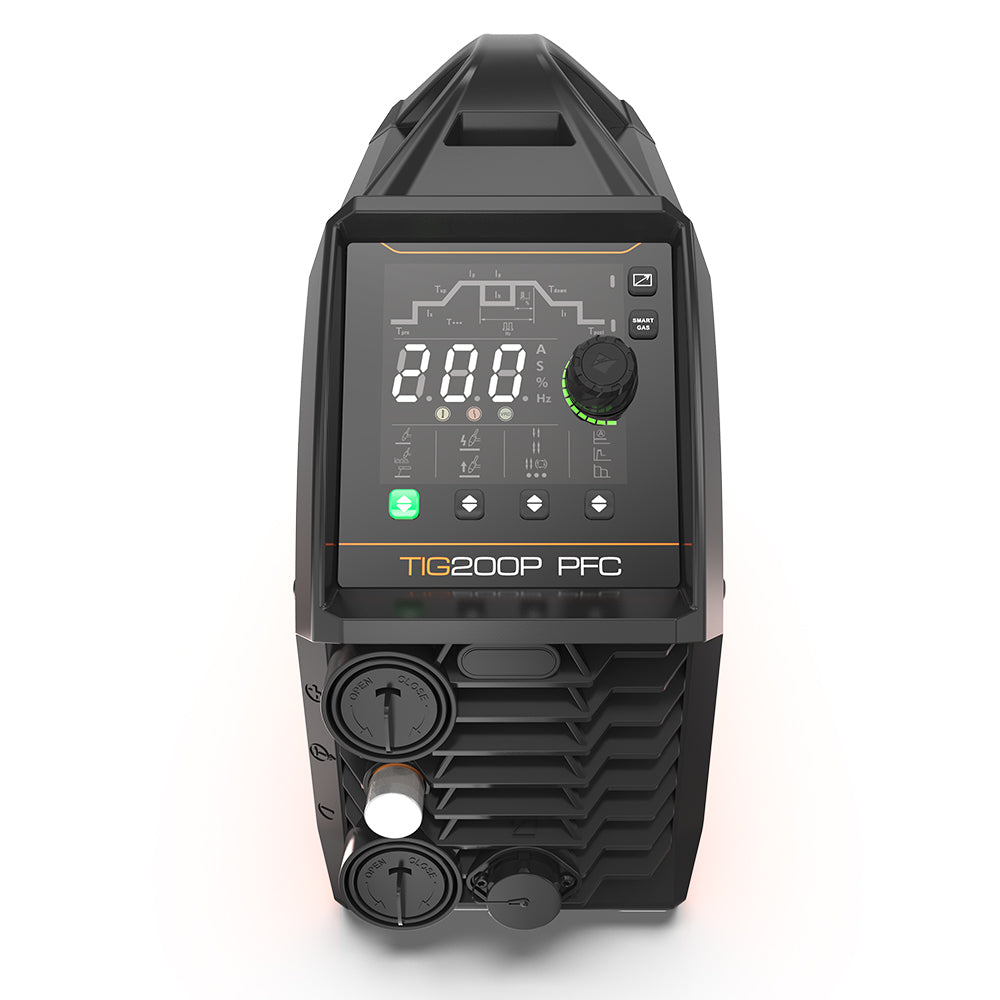

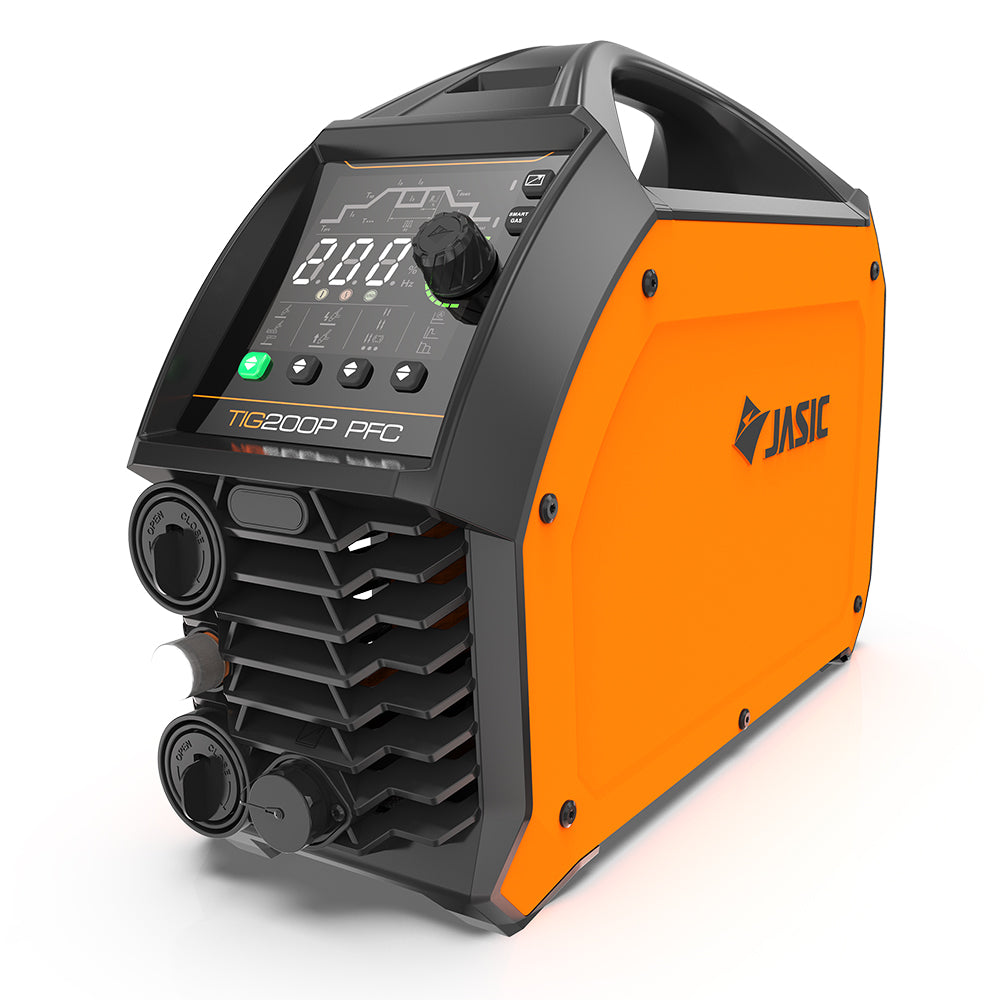

ET-200P 95-265V, 200Amps TIG200DC Pulse PFC incl.Protective Case Package

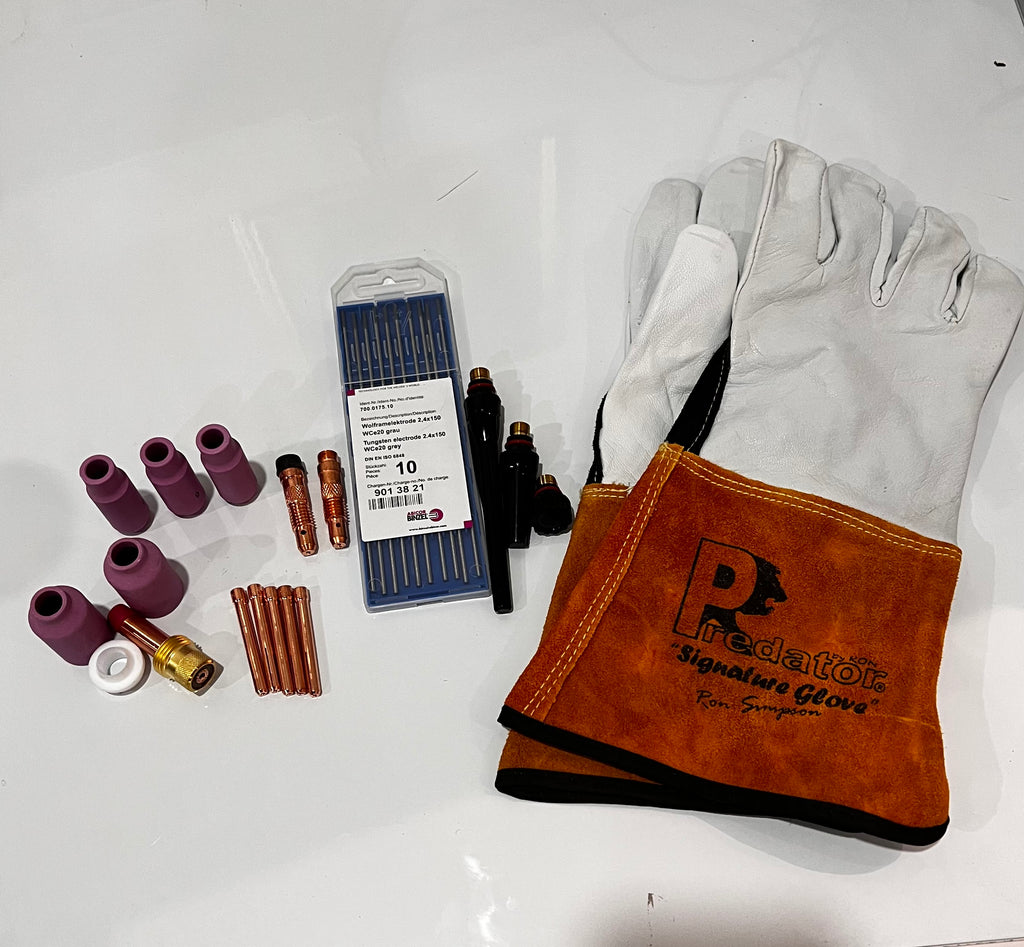

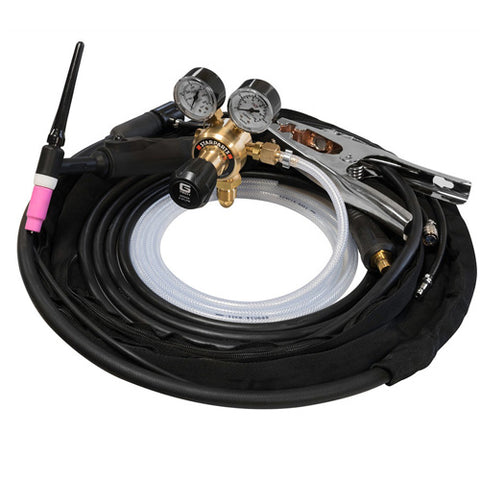

All TIG Packages incl.Tig Torch, Earth Return, Gas Hose and Regulator, Torch Spares, Tungstens, Pair of Tig Gloves, 230V 16Amp Plug with 13Amp Adaptor Lead, (415V Plug 16/32Amp 4/5 Pin
Technical Data ET-200P TIG 200P PFC Input voltage AC95-265V, 50/60 Hz AC 115V AC 230V No load voltage 68V TIG Rated input current 29.7A 19.5A Ieff 14.9A 9.8A Rated input power 3.4kVA 4.5kVA Current range 5-160A 5-200A Rated duty cycle @ 40ºC 25% MMA Rated input current 31.6A 25.6A Ieff 15.8A 12.8A Rated input power 3.7kVA 5.9kVA Current range 10-120A 10-180A Rated duty cycle @ 40ºC 25% Efficiency 84% Power factor 0.99 Idle state power MMA: 33W TIG: 7W Protection class IP23S Insulation class H Dimensions LxWxH 453 x 150 x 313mm Weight 8.97Kg Recommended generator size 5kVA 7kVA
Key Features • Rugged, ergonomic design • ClearVision technology • Adaptable wide voltage range • Dash-Arc • Smart Lift TIG • Full featured DC pulse TIG parameters • Flexible remote control solutions (optional) • Power factor correction (PFC), generator friendly • Quick factory reset; auto sleep mode • ABAP: Active Balancing Air Passage • Smart gas for optimised shielding gas consumption • Fan on demand • Voltage Reduction Device (VRD) • Key power electronic component protection • Overcurrent and overheat protection • Complete with protective case and MMA leads
