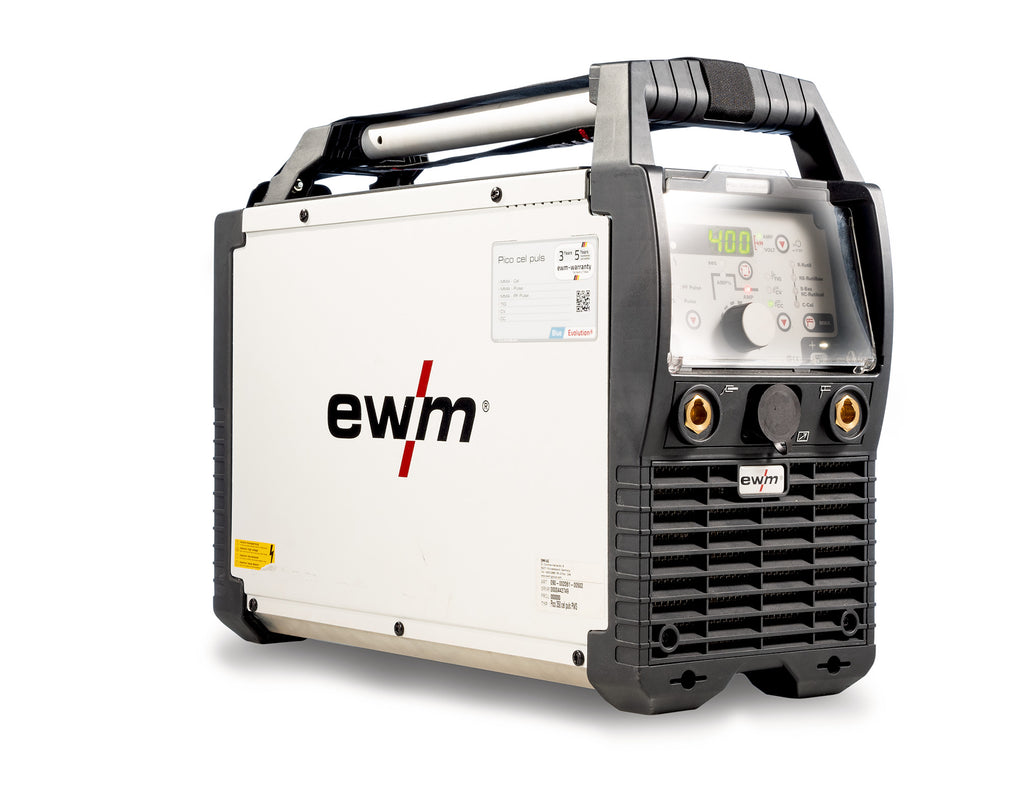

EWM Pico 400 cel puls pws 400V, 400Amps

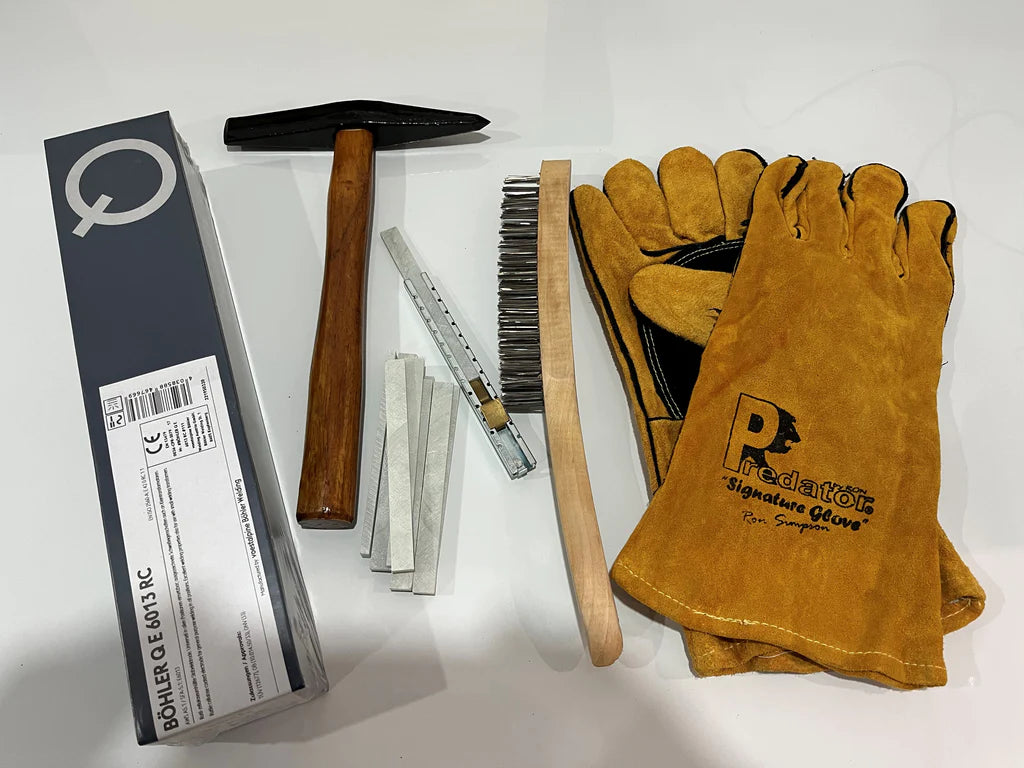

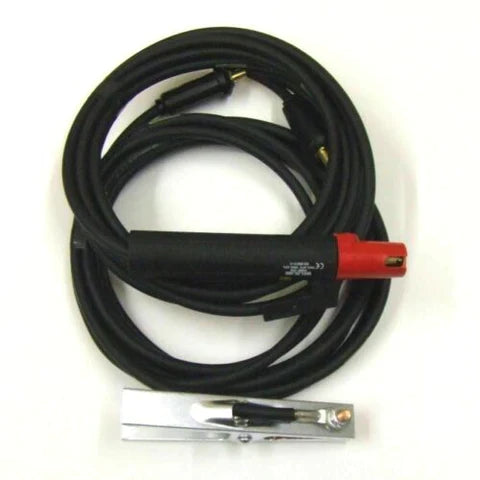

All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.230V 16Amp Plug with 13Amp Adaptor Lead, (415V 16/32Amp, 4/5Pin)
- Robust and handy CC/CV multiprocess inverter welding machine with built-in pole reversing switch, suitable for use on building sites
- Welding procedures and functions
- CC/CV characteristic
- MMA and pulsed TIG welding
- MMA welding
- TIG lift arc welding
- PF pulse function
- Cel characteristic
- Arcforce, hot start, antistick
- Arcforce and hot start can be set
- Welding polarity can be reversed by pressing a button (polarity reversing switch)
- GMAW welding with Pico drive 4L
- Suitable for flux cored wire welding
- Your benefits
- PRS: Pole reversal on the machine or via remote control saves time-consuming reconnecting of welding current connections
- Perfect MMA vertical-up welding thanks to PF pulse function
- Cellulose electrodes: 100% safe for vertical-down welding
- Unlimited generator operation even with long mains leads thanks to high mains voltage tolerances
- Robust design suitable for construction site use
- Impact-resistant casing
- Connection capability for remote control
- Inspected protection against splash water (IP-34s)
- Portable, shoulder strap
- Energy-saving thanks to high efficiency and standby function
- 5 m mains supply lead
- Available with open circuit voltage reduction, VRD (to AS 1674.2-2003; IEC/DIN EN 60974-1 and ГОСТ 12.2 007.8)
- Included in the delivery ex works:
- Practical cable strap for easy and organised transport of e.g. earth cable, welding torch, electrode holder, etc. (see figure 2)
- Cable holder for winding up the mains cable – guarantees convenient transport (see figure 3)
-
Version Pico 400 cel puls pws Setting range for welding current 10 A - 400 A Duty cycle 40 °C 400 A / 25 % 280 A / 60 % 230 A / 100 % Open circuit voltage 95 V Mains tolerances (ex works) -25 % up to +20 % Mains frequency 50 Hz / 60 Hz Recommended generator power 24.6 kVA Power consumption Pi 28 W Protection classification IP34 Test mark EMC class A Dimensions (L x B x H) 539 mm x 210 mm x 415 mm 21.2 inch x 8.3 inch x 16.3 inch Weight 25 kg / 55.1 lbs Standards IEC 60974-1 and -10 CL.A
