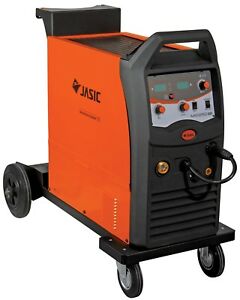

JM-250P 230V, 250Amps MIG250P Compact Pulse Package

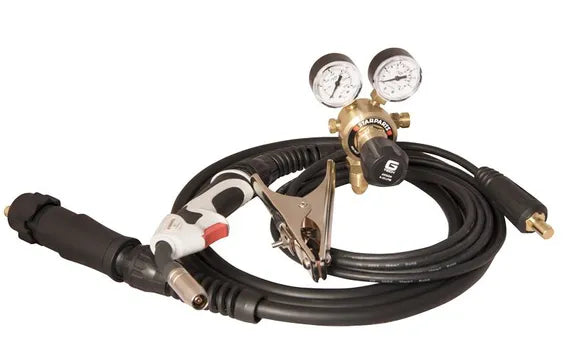

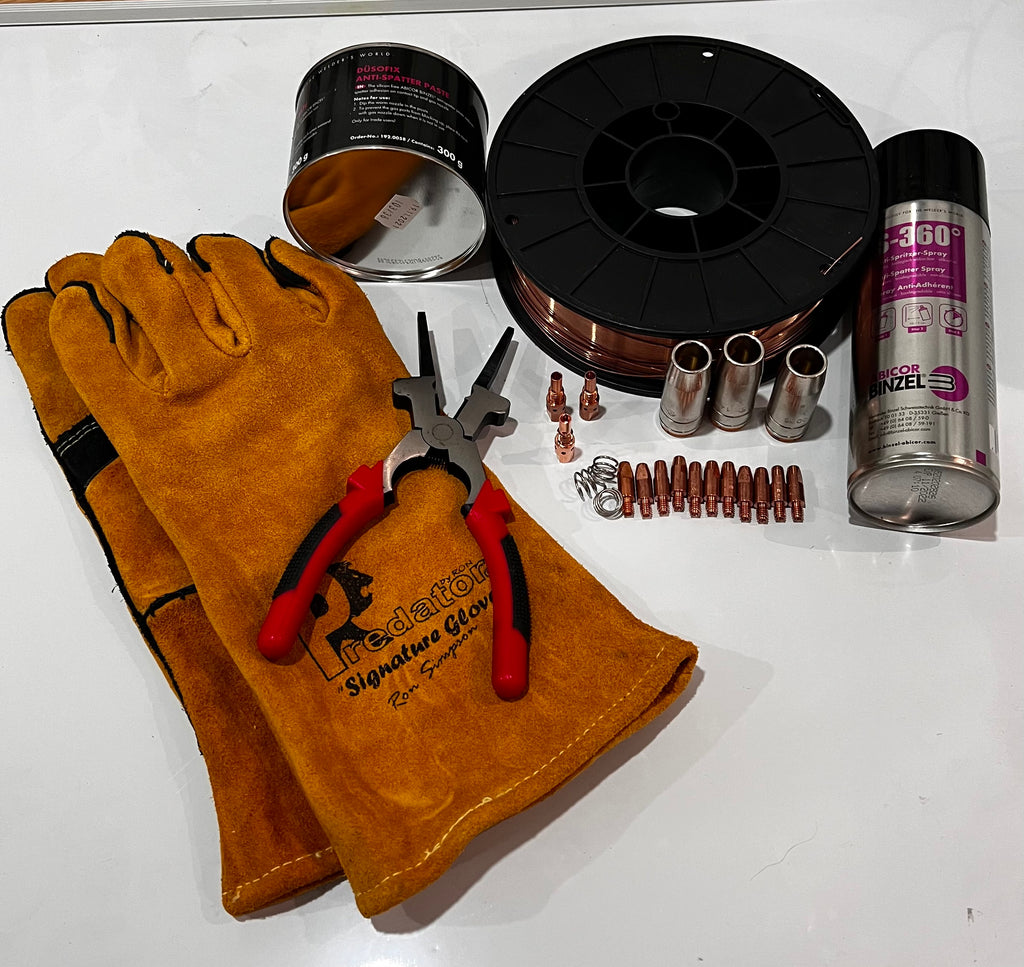

All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers 16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
The Jasic MIG 250P is a compact MIG/MAG/ MMA power source, the unit is feature rich and has synergic programs pre loaded with optimal parameters for inexperienced welders but with a provision of fine tuning for the experienced welder. The pulsed MIG mode allows for high quality welds with a spatter free finish.
TECHNICAL DATA Input Voltage AC 400V - 50/60 Hz Ieff (A) 13.7 Input Power (kVA) 15 Voltage Adjustment Range (V) 15 - 38 Current Range (A) 50 - 350 Duty Cycle @ 40°C 350A @ 40% No-Load Voltage (V) 62 (19V - VRD) Wire Spool Size ø 300mm Efficiency (%) 85 Power Factor 0.93 Protection/Insulation Class IP21S/F Dimensions (LxWxH mm) 900 x 450 x 755 Weight (Kg) 52
KEY FEATURES • Multi function compact MIG/MAG/MMA/Lift TIG • Suitable for 0.8, 1.0 and 1.2mm welding wire • Stable and reliable arc with minimal spatter • Suitable for flux cored • Advanced control circuitry • Digital A/V display • 4 roll wire feed drive • High duty cycle • Burn back control • Spool gun interface • Wire inching feature • VRD on MMA setting • AVR generator friendly
