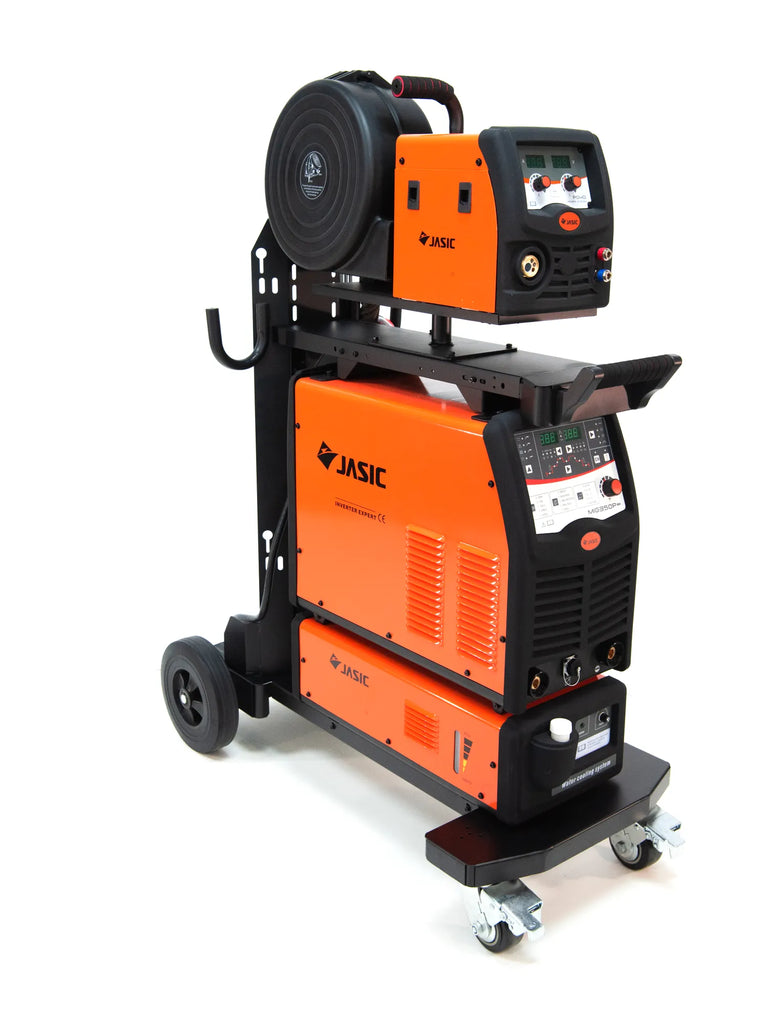

JM-350P 400V, 350Amps MIG350P Multi Process Separate Pulse 5M Interleads Water Cooled Package

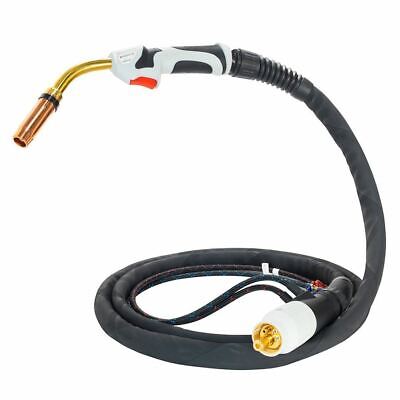

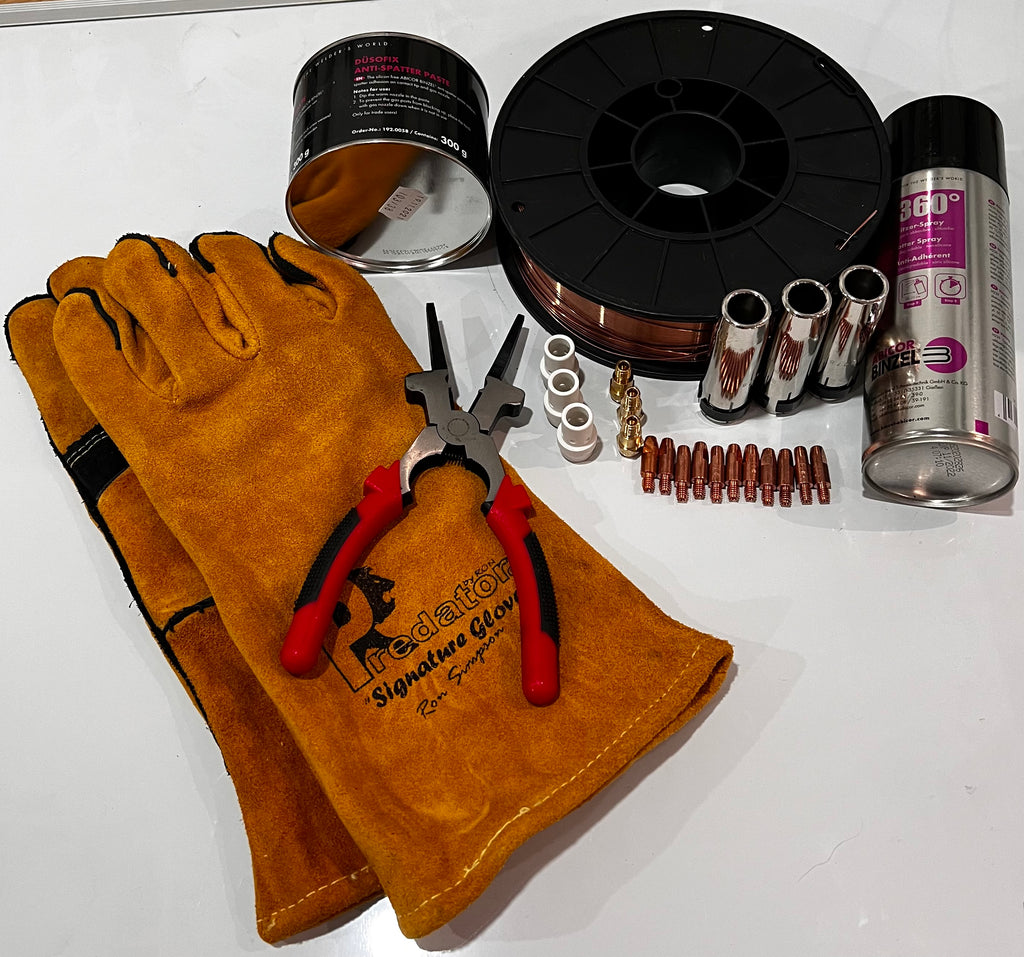

All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers 16Amp Plug fitted with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
Modular design double pulse IGBT synergic inverter with DSP technology
The Jasic MIG 350 Pulse is equipped with powerful IGBT components, digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance.
This three-phase inverter welder offers synergic curves for common materials and wires.
The welding inverter also has self-diagnostic protection systems that provides extreme reliability.
Technical Data Input Voltage AC 400V - 50/60 Hz Ieff (A) 23.6 Input Power (kVA) 21.1 Voltage Adjustment Range (V) 17 - 31.5 Current Range (A) 10 - 350 Duty Cycle @ 40°C 350A @ 60% No-Load Voltage (V) 70 Wire Speed (m/min) 1 - 18 Efficiency (%) 85 Power Factor 0.85 Protection/Insulation Class IP21S/F Dimensions (LxWxH mm) 1020 x 505 x 1390 Weight (Kg) 117
Key Features • IGBT multi process inverter • Synergic, MIG/MAG pulse, double pulse and DC MMA • DSP digital technology for optimum welding performance • 4 roll wire feed unit • Suitable for 0.8, 1.0, 1.2 and 1.6mm welding wire • Easy parameter settings for the operator • Synergic curves for common materials & wires • Self diagnostic system • Encoder feedback control of wire feed system • Power & status LED’s • Integrated water cooling system • Inverter trolley takes full size gas bottle
Brochures & Manuals
