JT-400P 400V, 400Amps TIG400PDC Water Cooled Package

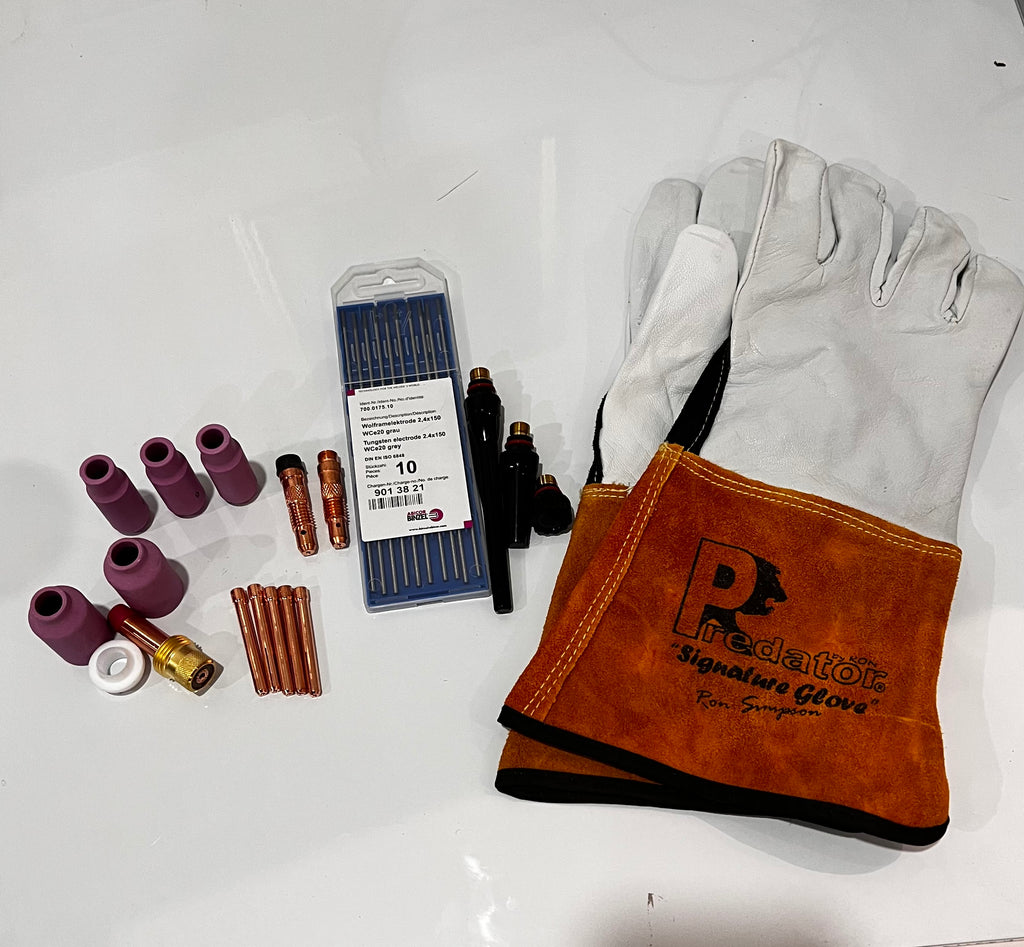

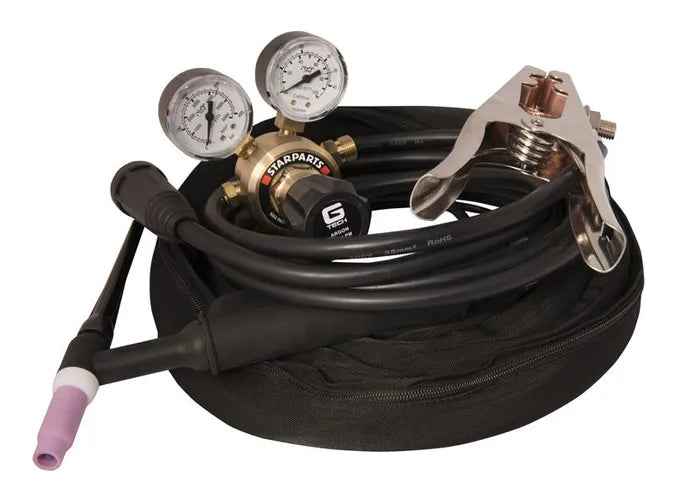

All TIG Packages incl.Tig Torch, Earth Return, Gas Hose and Regulator, Torch Spares, Tungstens, Pair of Tig Gloves, 230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V Plug 16/32Amp 4/5 Pin
The Jasic TIG 400 Pulse inverter is equipped with industrial grade IGBT components and an MCU chip for high accuracy and performance.
This technologically advanced inverter with a digital panel allows for software upgrades and provides 8 channel automatic storage of the welding parameters.

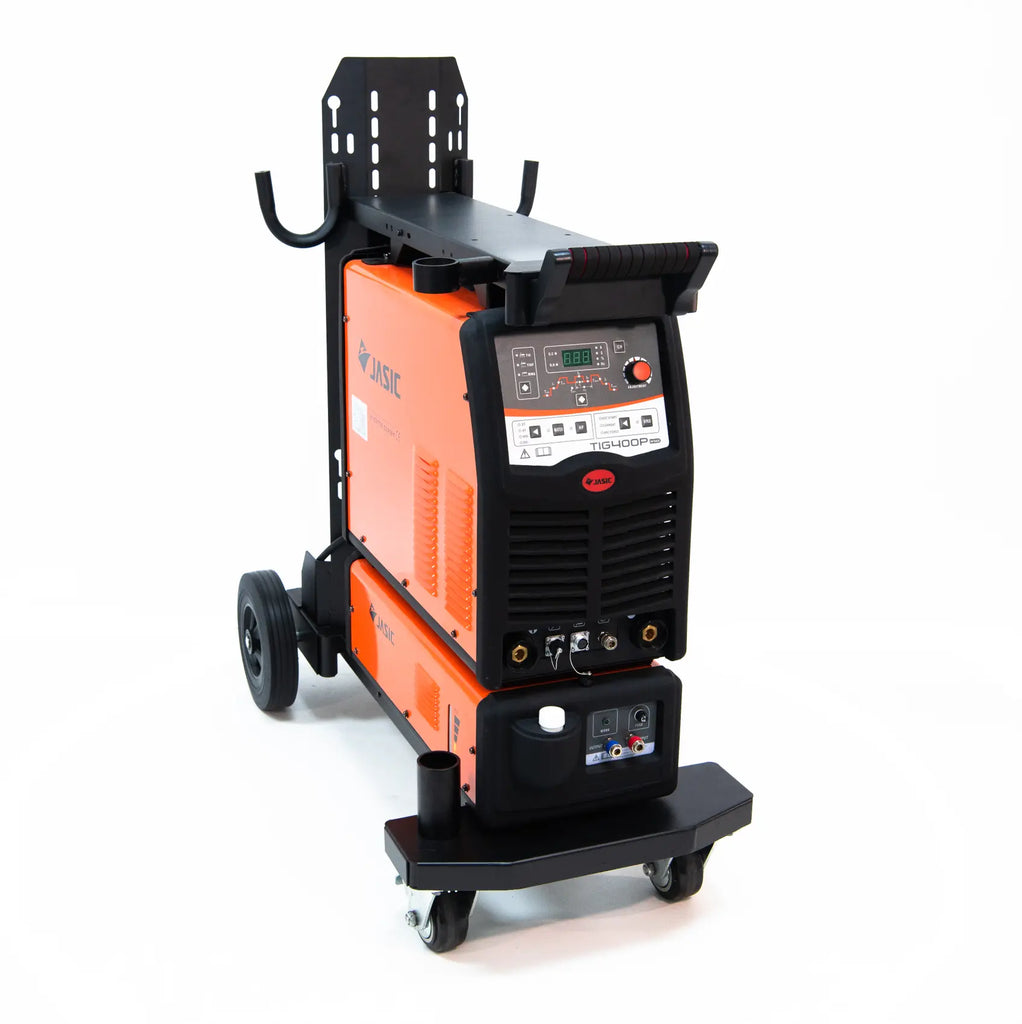

This modular design TIG welding system includes the trolley and water cooler as standard.
Technical Data Input Voltage AC 400V - 50/60 Hz Ieff (A) 14 Input Power (kVA) 18 Current Range (A) TIG DC 5 - 400 MMA DC 30 - 400 Duty Cycle @ 40°C 400A @ 50% No-Load Voltage (V) 68 Efficiency (%) 85 Power Factor 0.96 Protection/Insulation Class IP21S/F Dimensions (LxWxH mm) 760 x 360 x 585 Weight (Kg) 90
Key Features • Industrial Grade IGBT Inverter Technology • DC Pulse TIG/MMA with VRD function option • MCU chip for high accuracy and consistency • HF or Lift arc ignition, 2T/4T, spot-time • Up/down slope, pre/post flow, crater/initial/weld current • Digital panel with interface for easy software upgrades • Gas test function in DC TIG mode • Modular design with trolley and water cooler included • Automatic 8 channel storage of welding parameters • On demand fan and water cooling • Generator friendly**
Brochures & Manuals
