MOSA Magicweld 200 230V Petrol 200Amps

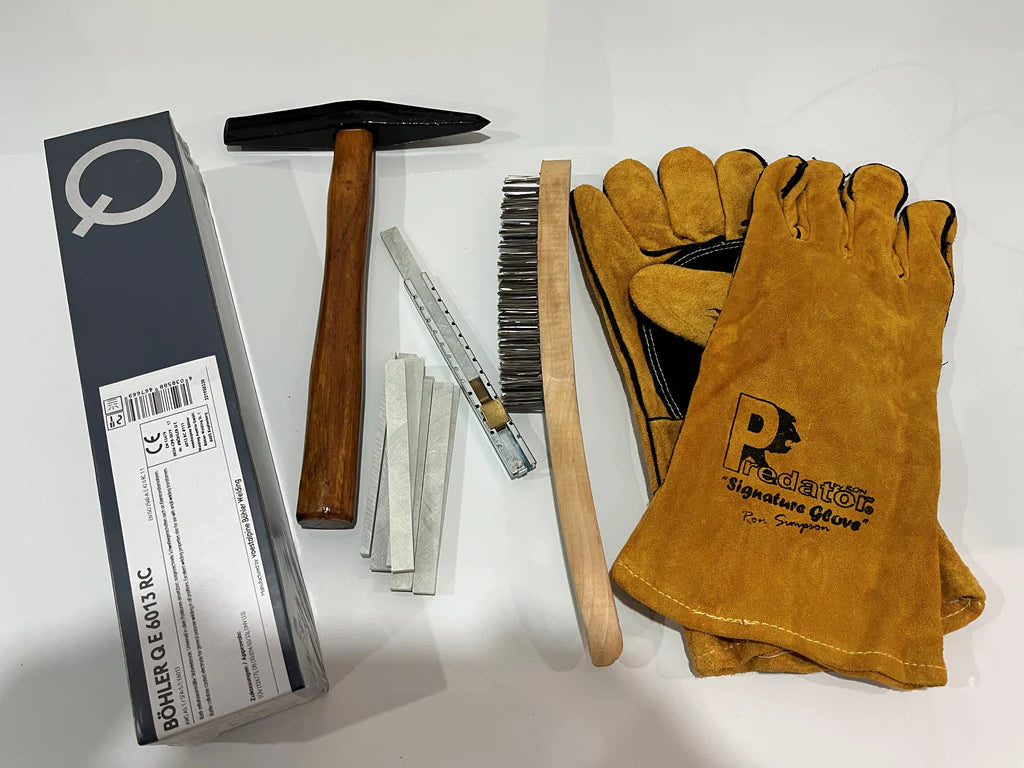

All Packages include MMA Lead 5metre, Earth Lead 5 metre, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.
Key Features • Arc welding source in D.C. welding • Welds any type of electrode, including cellulosic • High frequency control of welding current and voltage • Single-phase, 50 Hz aux current, inverter generated - 230V • Honda engine • Engine shut-down (oil alert) • MOSA Power optimiser (patent pending) • Auto idle • Protective frame • Portable • Meets EC directives D.C. Welding (Constant Current) Current range, continuous 20 ÷ 200A Duty cycle 200A - 60% Open circuit voltage 70V A.C. Generation - 50Hz - Permanent Magnet Alternator, Self-Exciting, Brushless Single-phase power (Continuous) 2.1 kVA (2.1 kW) / 110V / 18.2A Insulation class H Engine - Petrol, 4-Stroke, Ohv, Air Cooled Model Honda GX 270 Output * 6.3 kW (8.5 HP) Cylinders / Displacement 1 / 270cm³ Speed 3600 rpm Fuel consumption (welding 60%) 1.5 l/h * Maximum output (not overloadable) according to SAE J1349 General Specifications Tank capacity 5.3 litres Running time (welding 60%) 3.5 hours IP protection degree IP 23 Dimensions LxWxH (mm) * 630 x 490 x 540 Dry weight * 61 Kg Acoustic power LwA (pressure LpA) 99 dB(A) (74 dB(A) @ 7m)
