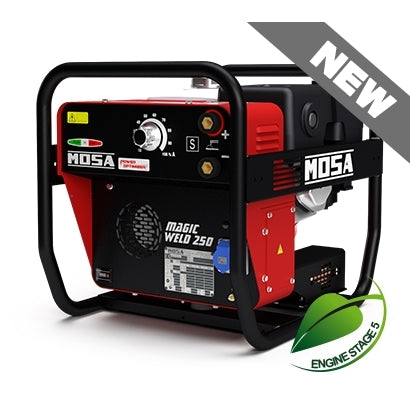

MOSA Magicweld 250 110V Petrol 250Amps

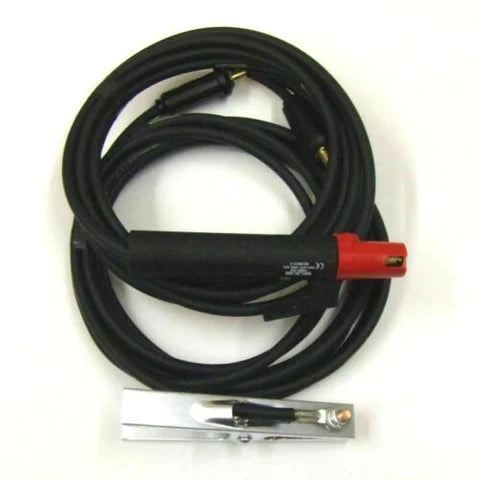

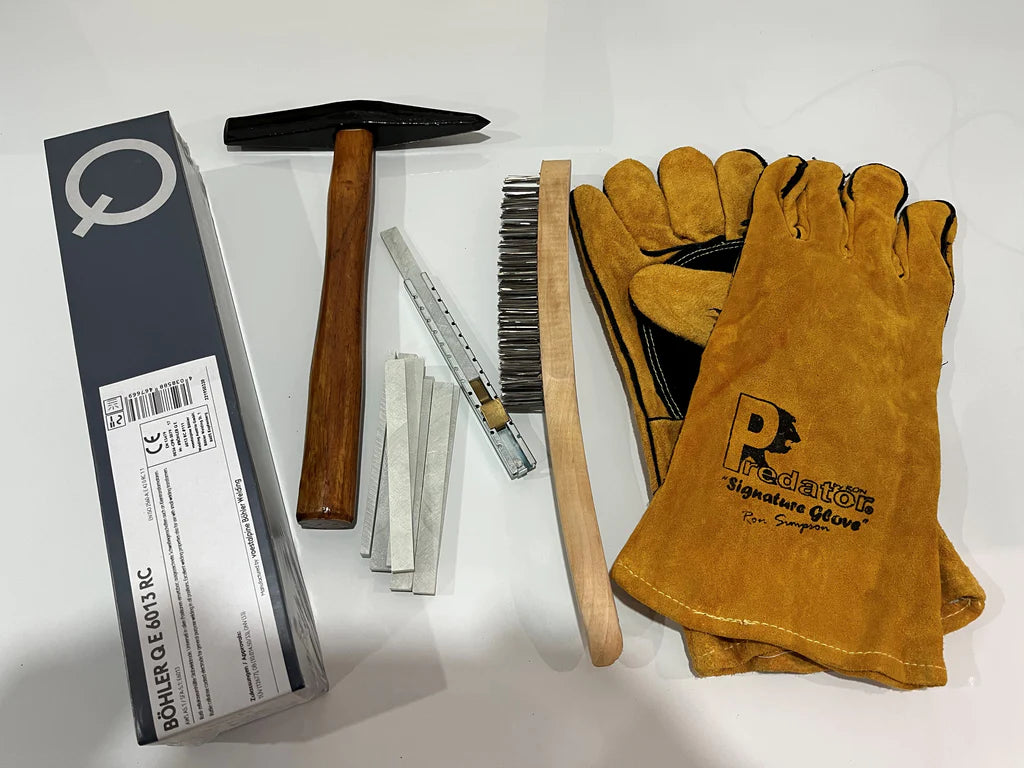

All Packages include MMA Lead 5metre, Earth Lead 5 metre, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.
FEATURES • Arc welding source in D.C. welding • High frequency control of welding current and voltage • Single-Phase, 50Hz aux current, inverter generated • Engine shut down for low oil level (oil alert) • Hour counter • Power optimiser (patent pending) • Auto Idle • Protective frame • Portable • Meets EC directives
l HONDA GX 390 * Stand-By net power 8.7 kWm (11.8 hp) * PRP net power 7 kWm (9.5 hp) * COP net power / Cylinders / Displacement 1 / 389 cm³ (0.39 lt.) Bore / Stroke 88 / 64 (mm) Compression ratio 8.2: 1 BMEP (Brake Mean Effective Pressure : LTP - PRP) / Speed governor type Mechanical FUEL CONSUMPTION 110 % (Stand-by power) 3.85 lt./h 100 % to PRP 3.5 lt./h 75 % to PRP 2.7 lt./h 50 % to PRP 1.8 lt./h COOLING SYSTEM Total system cap. - only engine / Fan air flow / LUBRICATION SYSTEM Total oil system capacity / Oil capacity in sump 1.1 lt. Oil consumption at full load
D.C. Welding General Specifications Fuel tank capacity 6.1 l Fuel consumption (welding 60%) / Running time (welding 60%) 2.8 h Starter battery / CONSTANT CURRENT Current range 250A @ 25V Type of regulation continue 20A @ 20.8V - 250A @ 25V Duty cycle 220A @ 28.8V / 35% | 200A @ 28V / 60% | 175A @ 27V / 100% Open circuit voltage 70 Vdc (Vdc peak) Arc force control No IP protection degree IP 23 * Acoustic power LwA (pressure LpA) 99 dB(A) (74 dB(A) @ 7 m) Performance class (ISO 8528) /
