MOSA TS200 DES/CF E/Start 110/230V Diesel 190Amps

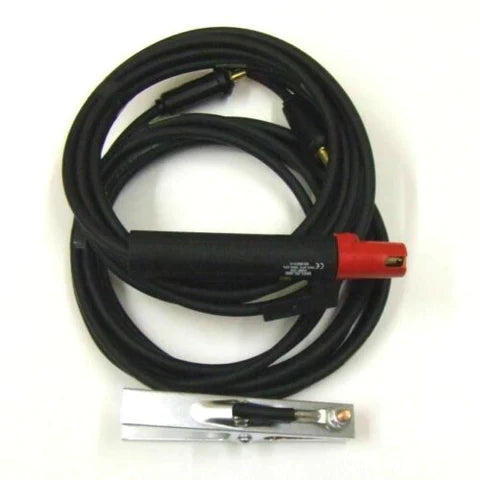

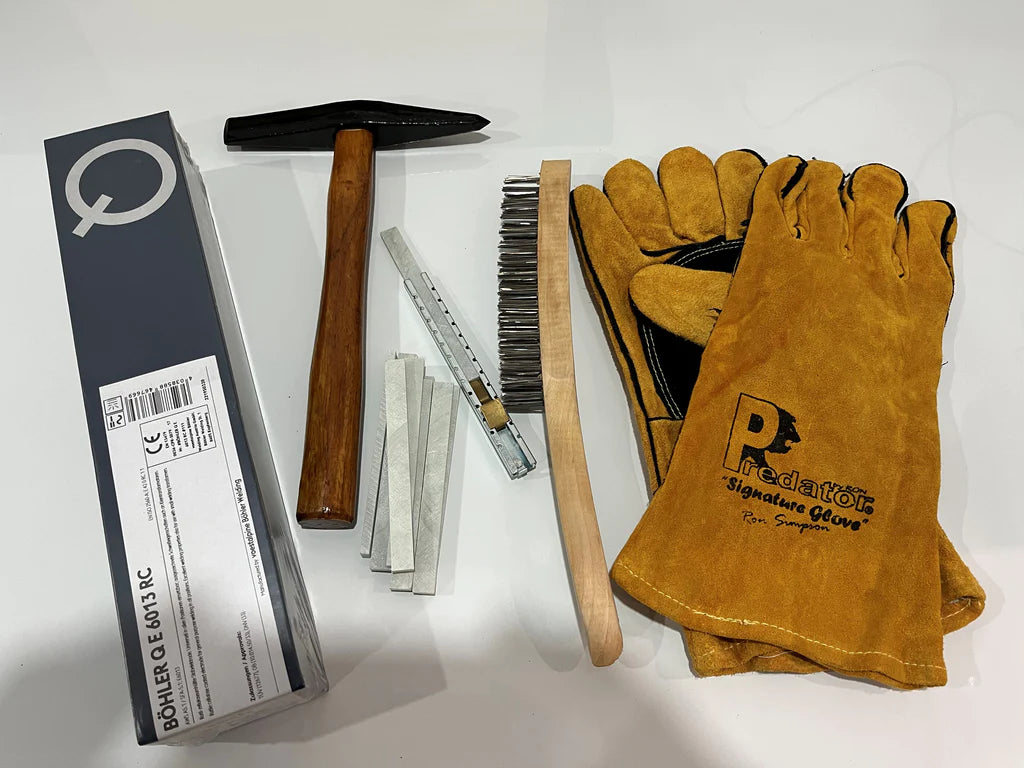

All Packages include MMA Lead 5metre, Earth Lead 5 metre, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.
FEATURES • Arc welding source in D.C. welding • Welds any type of electrode, including cellulosic • Double welding output (20-100A / 90-190A) • A.C. generator, single-phase and three-phase • Ground fault interruptor • Sockets: 1x400V 16A 3P+N+T CEE - 1x230V 16A 2P+T CEE 1x48V 32A 2P CEE • Manual recoil (DS) - Electric starter (DES) • Protective frame • Meets EC directives
Technical data TS 200 DS/CF TS 200 DES/CF D.C. WELDING (Constant Current) Current range, continuous Duty cycle Open circuit voltage 20 ¸ 100 A / 90 ¸ 190A 190 A 35% - 160 A 60% - 120 A 100% 98 V A.C. GENERATION - 50Hz - Three-phase asyncronous alternator, self-regulated, self-excited, brushless Three-phase power Single-phase power Single-phase power Insulation class 6 kVA / 400 V / 8.7 A 5 kVA / 230 V / 21.7 A 2 kVA / 48 V / 41.6 A H ENGINE - Diesel, 4-stroke, OHV, air cooled Model * Output Cylinders / Displacement Speed Fuel consumption (welding 60%) Yanmar L 100 N 6.5 kW (8.8 HP) 1/ 435 cm³ 3000 rpm 1 l/h * Maximum output (not overloadable) according to ISO 3046-1 GENERAL SPECIFICATIONS Tank capacity Running time (welding 60%) IP protection degree * Dimensions Lxlxh (mm) * Dry weight ** Acoustic power LwA (pressure LpA) 5.5 l 5.5 h IP 23 900x550x620 130 kg 150 Kg 99 dB(A) (74 dB(A) @ 7 m)
Data page 8
