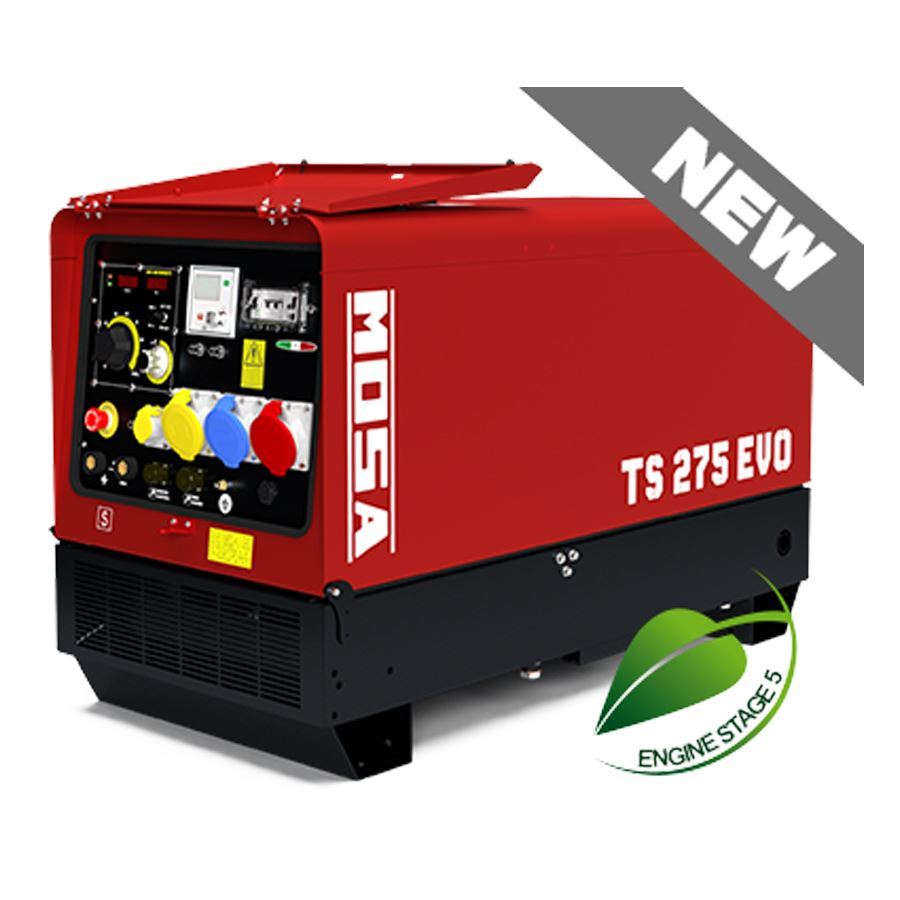

MOSA TS275 EVO 110/230/400V Diesel 275Amps

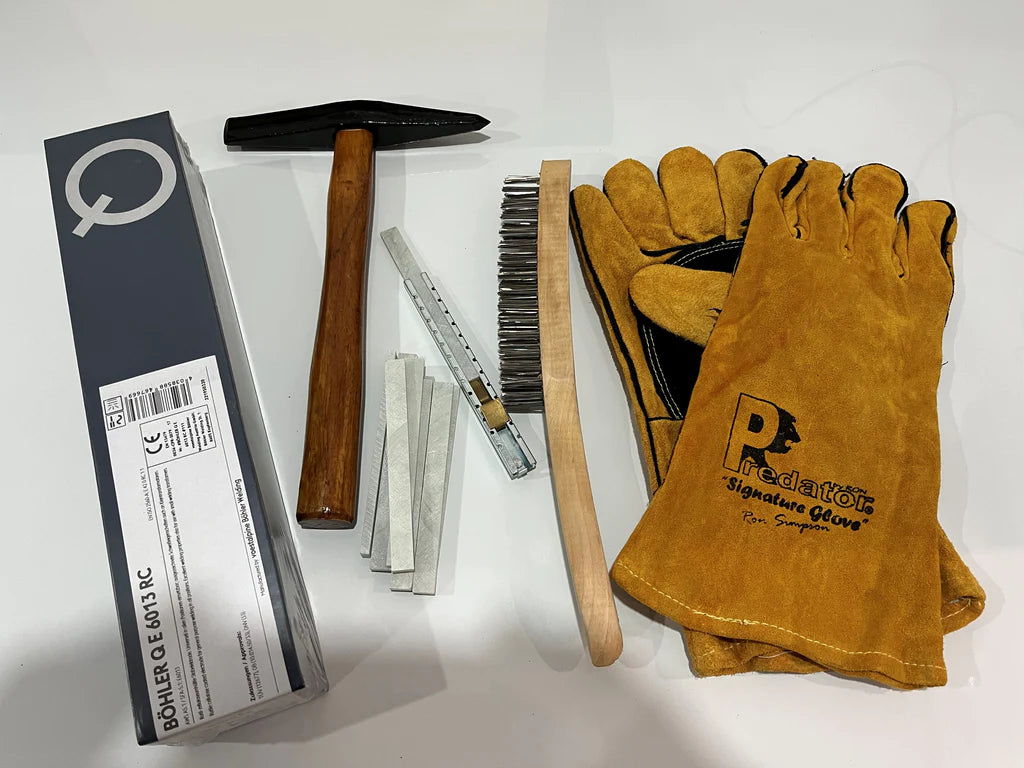

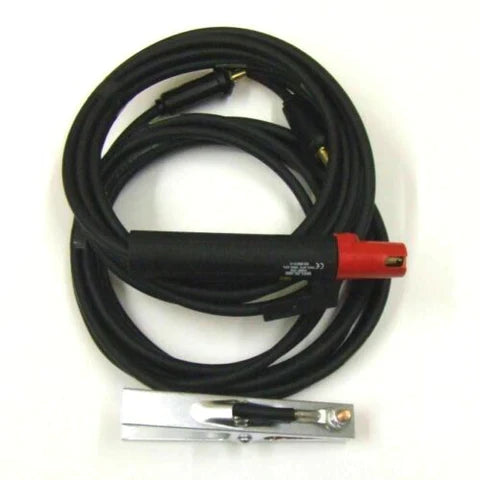

All Packages include MMA Lead 5metre, Earth Lead 5 metre, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.
FEATURES • D.C. Arc welding source • Electronic regulation of welding current and arc force • Welding control panel “EVO CONTROL” • A.C. generator, single-phase and three-phase also available while welding • Engine control digital module • Bunded base • Base plate with forklift pockets • Canopy with large opening to allow easy maintenance (replacement of air, oil, fuel filters) • Large fuel tank • Fuel level sensor • External plugs for oil and water drainage • Emergency stop button • Central lifting eye • Wide access for easy maintenance • Meets EC/UE directives
Engine 3000 rpm 4 STROKE, NATURAL ASPIRATED Model KOHLER KDW702 Stand-By net power 10.3 kW (14 hp) PRP net power 9.3 kW (12.6 hp) COP net power / Cylinders / Displacement 2 / 686 cm³ (0.686 lt.) Bore / Stroke 75 / 77,6 (mm) Compression ratio 22.8 :1 BMEP (Brake Mean Effective Pressure : LTP - PRP) / Speed governor type Mechanical FUEL CONSUMPTION 110 % (Stand-by power) 3.8 lt./h 100 % to PRP 3.4 lt./h 75 % to PRP 2.6 lt./h 50 % to PRP 1.9 lt./h COOLING SYSTEM Total system cap. - only engine lt - 1.1 lt Fan air flow 72 m³/min. LUBRICATION SYSTEM Total oil system capacity / Oil capacity in sump 1.6 lt Oil consumption at full load / EXHAUST SYSTEM Maximum exhaust gas flow 2.2 m³/mim. Max. exhaust gas temp. 540 °C Maximum back pressure 60 kPa (0.6 bar) External diameter exhaust pipe / ELECTRICAL SYSTEM 12 Vdc Starter motor power 1.6 kW Battery charging alternator cap. 40 A Cold start - 10 °C With cold start aid / AIR FILTER Dry Combustion air flow 1.02 m³/min. HEAT REJECTED AT FULL LOAD To exhaust system / To water and oil / Radiated to room / To charge cooler
