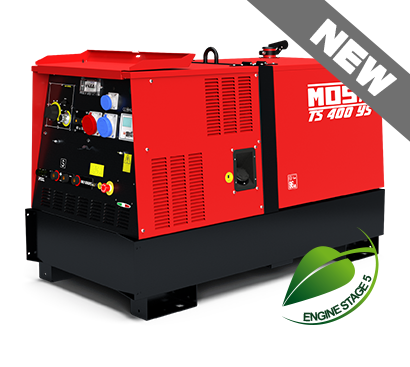

MOSA TS400YS 110/230/400V Diesel 400Amps 35.C1BQ3020

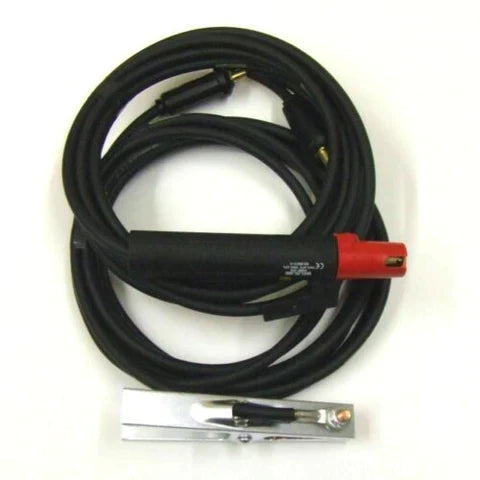

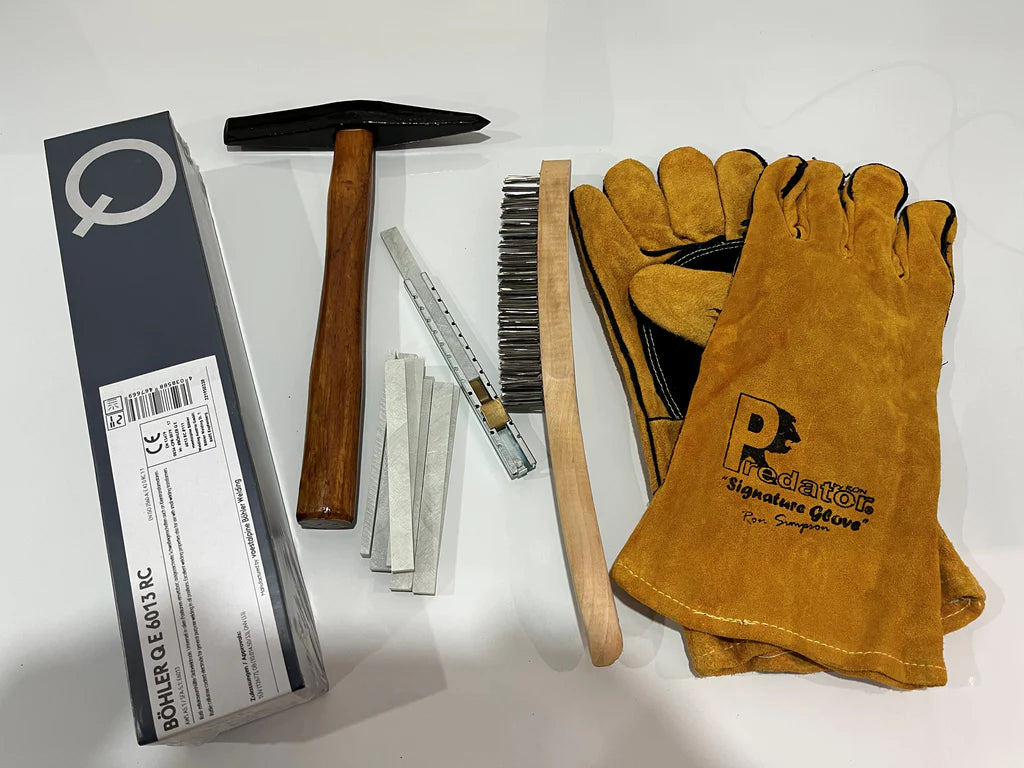

All Packages include MMA Lead 5metre, Earth Lead 5 metre, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.

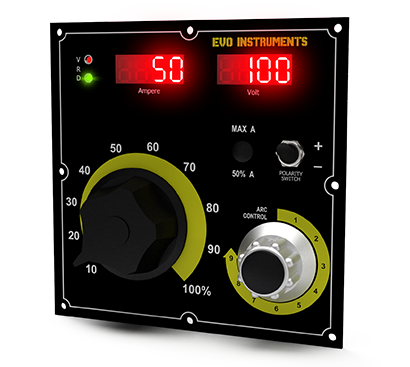

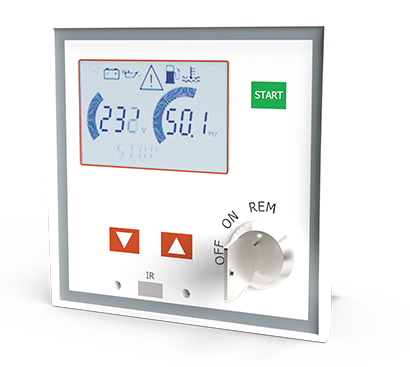

FEATURES • D.C. Arc welding source • Electronic regulation of welding current and arc force • Double welding range • Welding control panel “EVO CONTROL” • Arc Gouging socket • A.C. generator, single-phase and three-phase also available while welding • Engine control digital module • VRD - Voltage reduction device (only with EVO INSTRUMENT) • Central lifting eye • Wide access for easy maintenance • Meets EC directives for noise and safety
Engine Driven Welder Diesel YANMAR 4TNV88 - Three-phase asynchronous Alternator - Water cooling
WELDING
- Welding current: 20A ÷ 400A
- Welding current electronic regulation: continues on 2 scales: 20A ÷ 200A / 20A ÷ 400A
- Service: 400A - 60% / 350A - 100%
- Open circuit voltage (no-load voltage): 72 Vcc (77.5 Vcc di picco)
POWER RATINGS
- Three-phase power: 16 kVA / 400 V / 23.1 A
- Single-phase power: 10 kVA / 230 V / 43.5 A
GENERAL SPECIFICATION
- Tank capacity: 60 l
- Running time (welder 60%): 19 h
- Measured acoustic power LwA (pressure LpA): 94 dB(A) (69 dB(A) @ 7 m)
- Guaranteed acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7 m)
- Weight: 750 Kg
- Dimensions max. on base Lxlxh: 1720x850x1128 mm
-
Engine Driven Welder Diesel YANMAR 4TNV88 - Three-phase asynchronous Alternator - Water cooling
WELDING- Welding current: 20A ÷ 400A
- Welding current electronic regulation: continues on 2 scales: 20A ÷ 200A / 20A ÷ 400A
- Service: 400A - 60% / 350A - 100%
- Open circuit voltage (no-load voltage): 72 Vcc (77.5 Vcc di picco)
POWER RATINGS
- Three-phase power: 16 kVA / 400 V / 23.1 A
- Single-phase power: 10 kVA / 230 V / 43.5 A
GENERAL SPECIFICATION
- Tank capacity: 60 l
- Running time (welder 60%): 19 h
- Measured acoustic power LwA (pressure LpA): 94 dB(A) (69 dB(A) @ 7 m)
- Guaranteed acoustic power LwA (pressure LpA): 95 dB(A) (70 dB(A) @ 7 m)
- Weight: 750 Kg
- Dimensions max. on base Lxlxh: 1720x850x1128 mm
- Datasheet
