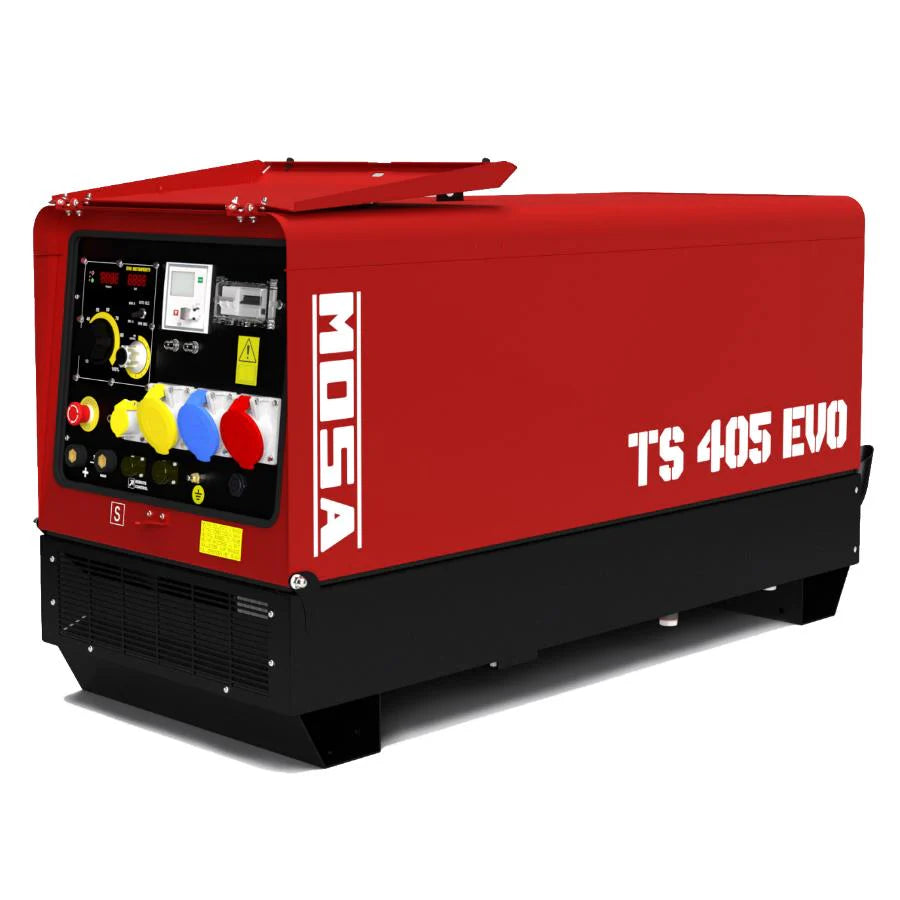

MOSA TS405 EVO-CC/CV 110/230/400V Diesel 400Amps 35.C1KS10CV

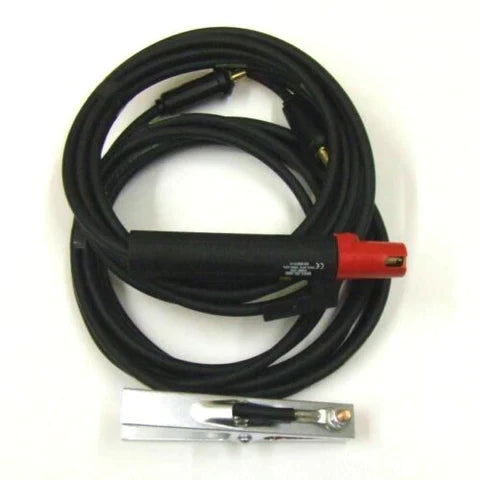

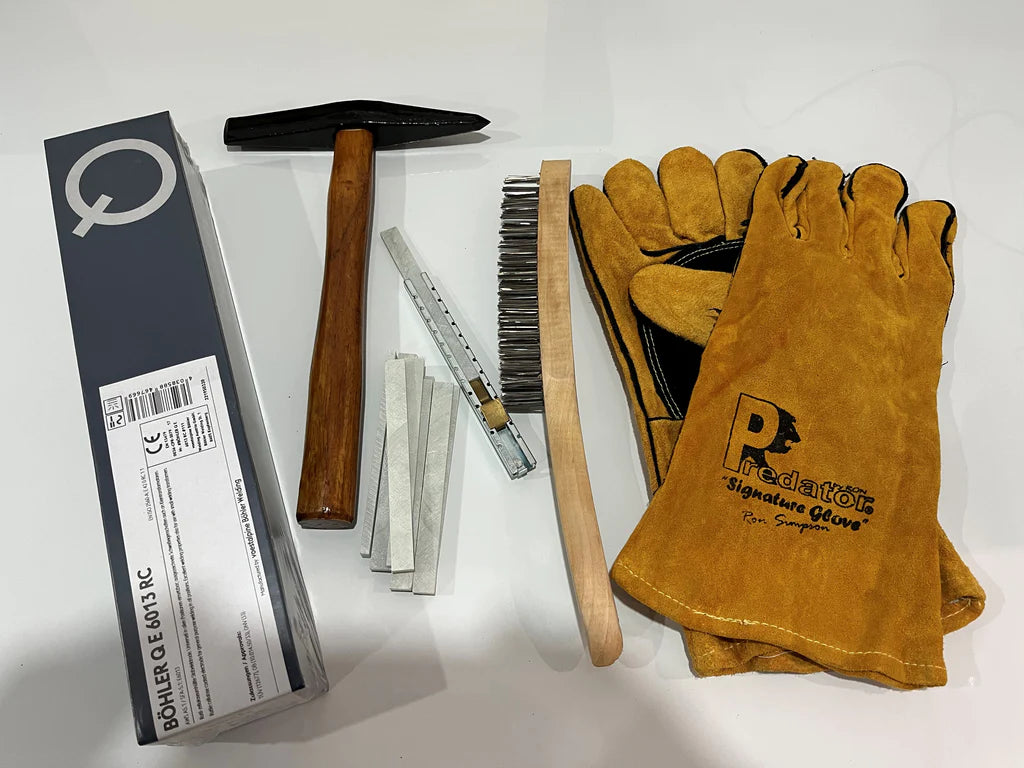

All Packages include MMA Lead 5metre, Earth Lead 5 metre, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.
Engine Driven Welder Diesel KOHLER KDW1003 - Three-phase asynchronous Alternator - Water cooling
WELDING
- Welding current: 20A / 20.8V ÷ 400A / 20V (Stick) | 20A / 10.8V ÷ 400A / 20V (Tig)
- Service: 330A @ 33.2V / 60% - 300A @ 32V / 100% (Stick) | 380A@ 25.2V / 35% - 330A@ 23.2V/ 60% - 300A@ 22V / 100% (Tig)
- Open circuit voltage (no-load voltage): 75 Vcc (79 Vcc peak)
POWER RATINGS
- Three-phase power: 14 kVA (11.2 kW) / 400 V / 20.2 A
- Single-phase power: 8 kVA/kW / 230 V / 34.8 A
- Single-phase power: 4 kVA/kW / 110 V / 36.4 A
- Single-phase power: 5 kVA/kW / 48 V / 104 A
GENERAL SPECIFICATION
- Tank capacity: 38 l
- Running time (welder 100%): 11.5 h
-
Guaranteed acoustic power LwA (pressure LpA): 96 dB(A) (71 dB(A) @ 7 m)
-
Measured acoustic power LwA (pressure LpA): 94.7 dB(A) (69.7 dB(A) @ 7 m)
-
Weight: 455 Kg
- Dimensions max. on base Lxlxh: 1433x710x945 mm

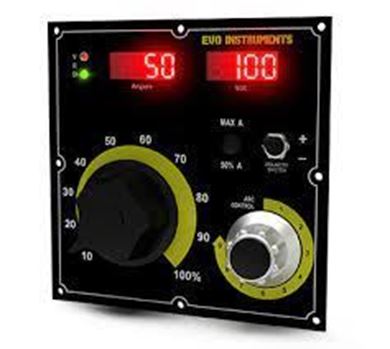

- FEATURES • D.C. Arc welding source • Electronic regulation of welding current and arc force • Welding control panel “EVO CONTROL” • A.C. generator, single-phase and three-phase also available while welding • Engine control digital module • Bunded base • Base plate with forklift pockets • Canopy with large opening to allow easy maintenance (replacement of air, oil, fuel filters) • Large fuel tank • Fuel level sensor • External plugs for oil and water drainage • Emergency stop button • Central lifting eye • Wide access for easy maintenance • Meets EC/UE directives
- Datasheet
