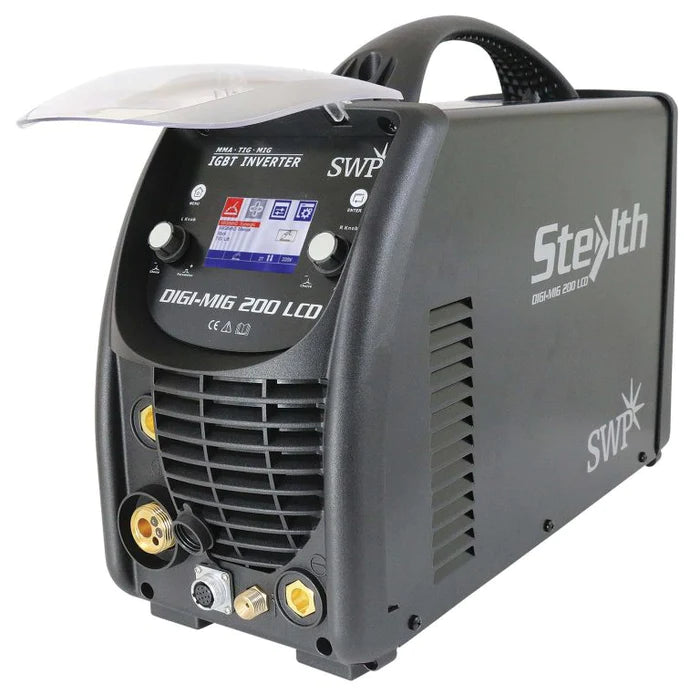

Stealth 9005H Digi-Mig 200 LCD PFC Multiprocess – 110V/230V 230V, 200Amps

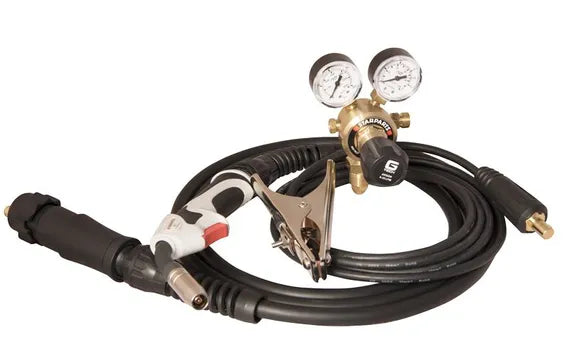

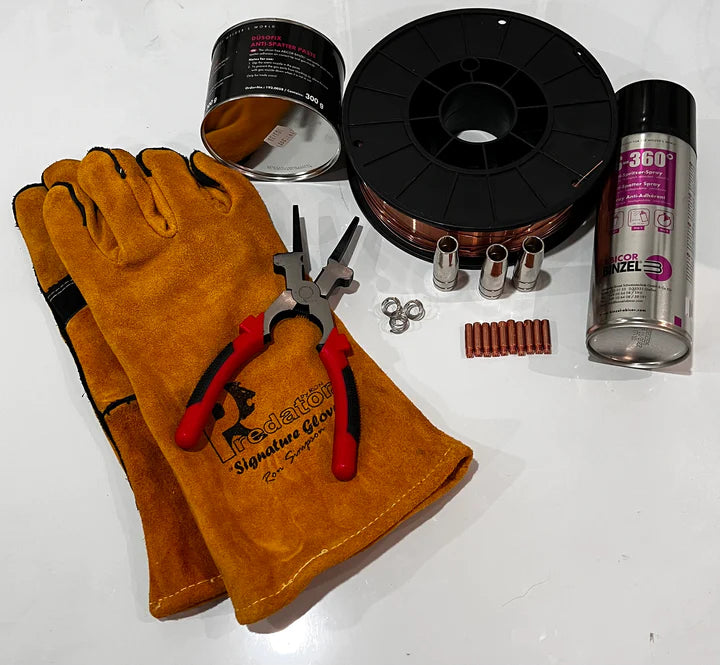

All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers, 16Amp Plug with 13Amp Adaptor Lead, 415V 16/32A Plug 4/5 Pin
LCD displays 260,000 true colours,Power factor more than 0.99, Multiple advantages such as energy saving and wider input voltage, Works with 110V and 230V, Capable of loading up to 5kg spool, Waveform control for added stability of the arc – even at low currents, Equipped with temperature, voltage and current sensors for high protection, M25-3 torch and 2068 regulator included
Input power voltage (V) 110/230±10% Frequency (Hz) 50/60 MIG TIG MMA Effective current – 110V 23.4 17.7 17.7 Effective current – 230V 17.7 13.9 20.2 MIG TIG MMA MIG TIG MMA Rated input current (A) 37 28 28 28 22 32 Duty cycle (A) (40°C 10 min) 40% @ 140 40% @ 100 40% @ 200 60%@115 60% @ 85 60% @ 165 100% @ 90 100% @ 65 100% @ 130 No load voltage – limited (V) 67 (MIG) 14 (TIG/MMA) Welding current range (A) 25~140 (MIG 110V) 25~200A (MIG 230V) Welding voltage range (V) 10~21 (MIG 110V) 10~27V (MIG 230V) Efficiency (%) 80 Power factor 0.99 Insulation class H Protection class IP23 Cooling Air Overall dimensions (mm) 560 x 220 x 410 Weight (kg) 15.5 Accessories included 3m Argon hose, 3m earth return lead
