ZXWS-MU-4 95-265V, 200Amps 4 in 1 Multi Process Welder PFC MIG PULSE, ACDC TIG, MMA Package
All MIG Packages incl.Mig Torch, Earth Return, Gas Hose and Regulator, Torch Spares Kit, Mig Wire 5.0K Reel, Pair of Welding Gauntlets, Antispatter Spray, Tip Dip, Mig Pliers, 230V 16Amp Plug fitted with 13Amp Adaptor Lead, (415V 16/32A Plug 4/5 Pin)
All TIG Packages incl.Tig Torch, Torch Spares, Tungstens, Pair of Tig Gloves
All MMA Packages include MMA Lead, Earth Lead, 5.0Kg Pkt 6013 Electrodes, Wire Brush, Chipping Hammer, Welders H/Duty Gauntlets, French Chalk & Holder.
Featuring MIG Pulse Technology AC/DC HF TIG Synergic MIG Colour Screen

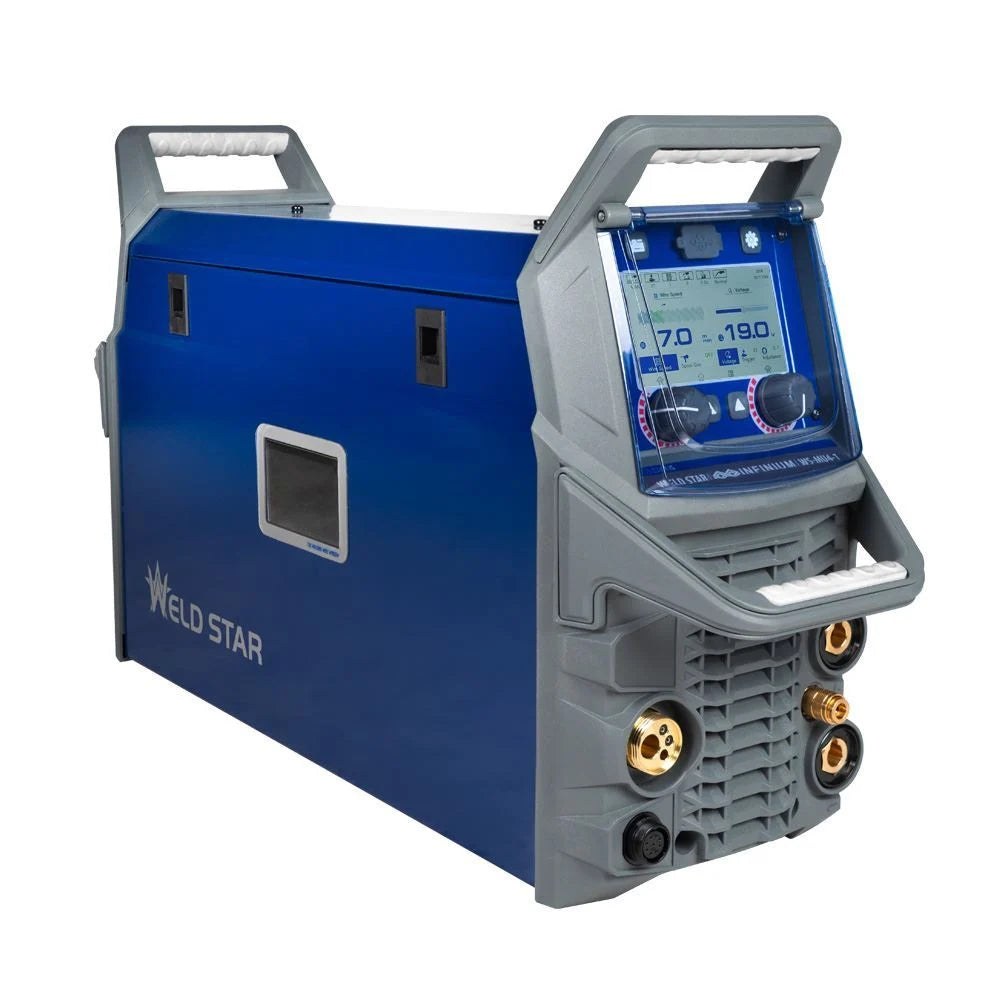

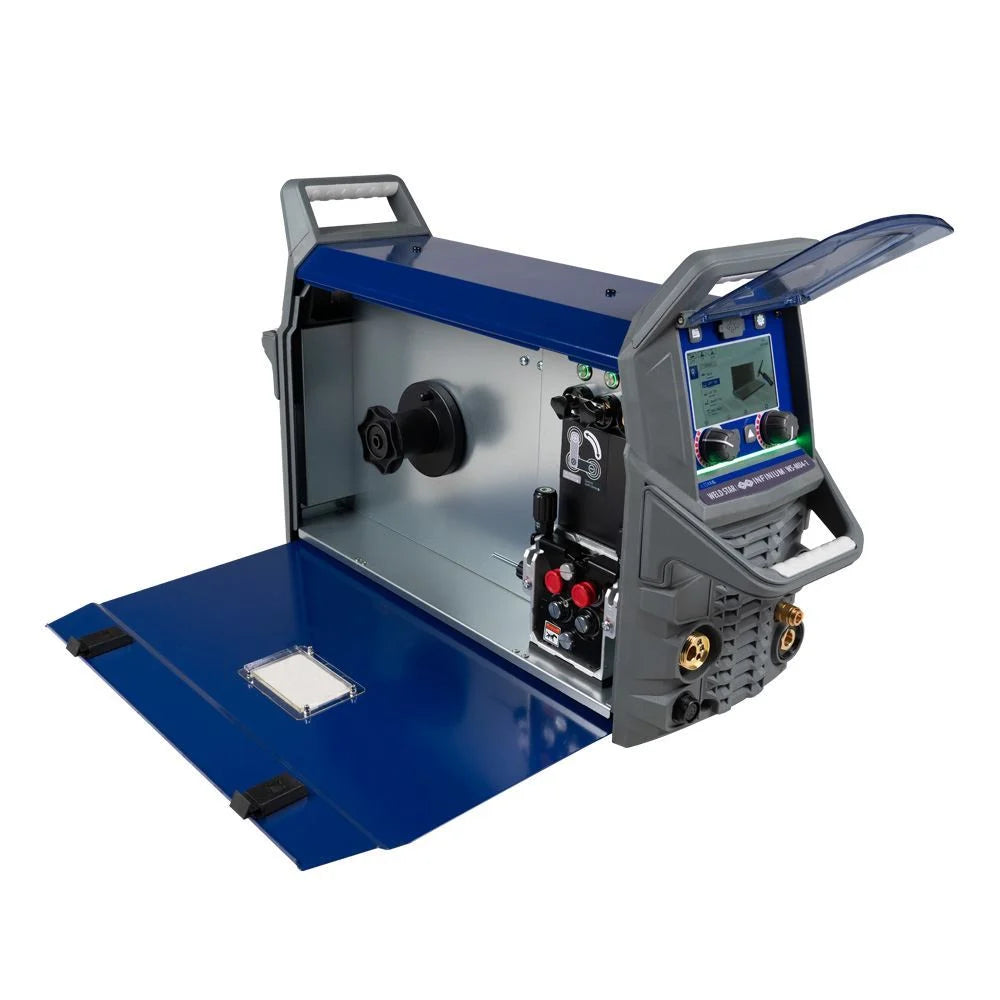

INFINIUM 4 IN 1 MULTI PROCESS WELDER LCD 200A The Weld Star Infinium inverter multi process machine has been designed to incorporate the most advanced features and technology offering the operator a user friendly interface via the 5” LCD screen. Welding processes include: MIG/MAG Synergic, MIG/MAG Pulse, MIG/MAG Standard, TIG AC/DC (HF/Lift), MMA AC/DC, MMA AC/DC Pulse
TECHNICAL DATA - WS-MU4-1 Input Voltage AC110V ±15% 50/60Hz AC230V±15% 50/60Hz Ieff (A) MIG 17.5 TIG AC 16 / DC 16 MMA AC 18.2 / DC 19.7 MIG 14 TIG AC 10 / DC 11 MMA AC 15 / DC 17 Input Power (kVA) 4.5 7.5 Current Range (A) MIG 10 - 140 MMA 5 - 130 TIG 10 - 160 MIG 40 - 200 MMA 5 - 200 TIG 5 - 200 No-Load Voltage (V) MIG 72 MMA 75 TIG 14 Duty Cycle @ 40°C 200A @ 25% Efficiency (%) 85 Idle State Power (w) 30 Power Factor 0.99 Protection/Insulation Class IP23/H Wire reel weight/spool size 5kg / 200mm Dimensions (LxWxH mm) 660 X 210 X 330 Weight (Kg) 20
KEY FEATURES • Advanced IGBT multi-process inverter technology which is compact and lightweight at only 20 Kg • PFC technology offering multiple advantages such as energy efficiency and wide range input voltage from 95Vac - 265Vac • Generator friendly • Automatic dual voltage input detection • Smart fan - reduces power consumption and intake of dust and fumes • IP23 protection • Built to EN-60974-1 and is fully compliant with the European Commission Regulation 2019/1784, CE and UKCA • With synergic MIG/MAG, welding parameters can be automatically selected based on material thickness and voltage with synergic curves for common materials and wires • Built in TIG welding features such as HF or Lift TIG, pre/post flow gas times, 2T/4T, slope up/down and pulse, all to ensure excellent TIG welding characteristics in both AC and DC • Smart TIG function with advanced TIG welding features such as multi-wave, Q start and hybrid TIG, whilst still maintaining ease of set up for the user • DC and AC MMA suitable for a wide range of electrodes • Advanced MMA features such as pulse and automatic current regulation based on electrode diameter • Built in hot start arc ignition function which ensures excellent arc ignition in MMA for easier and more reliable arc starting with built in self adaptive arc force technology which maintains the optimum MMA arc conditions during operation even with long welding cables • In-built VRD • Ability to save up to 10 stored programmes for quick set up • Advanced error code menu for ease of fault and troubleshooting diagnosis • Panel mounted USB connection for quick and easy firmware updates • Available with a range of accessories including on torch remote, foot pedal and 2 wheel trolley
